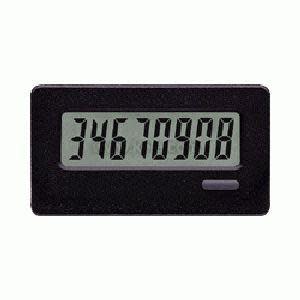

A small rectangular device with a greenish LCD screen showing several large numbers, set within a black frame.

CUB7CCS0 | Red Lion | Alarms & Indication

Counter 8-Digit 1/32 Din Low Volt Reflective LCD

Brand:Red Lion

MPN:CUB7CCS0

SKU:CUB7CCS0

List Price:

$653.93

Today's Price:

$340.04

product datasheet

catalog page

Lead time of 11 days. Chat with Kele experts now

product specifications

Type

Counter/Timer

Enclosure Rating

NEMA 4X,IP56

Supply Voltage (Nominal)

24 VDC

Mount

Panel

product series specifications

Power: 3.6 VDC Lithium battery

Battery Life: Typical 7 years

Input: Contact or solid-state switch or Voltage

Range: 0-99999999, Count up only

Timer Count: 0.001-sec up to 1-hour increments

Count Speed: Up to 10 kHz

Digit Size: 0.35" (8.90 mm) high digits

Reset: Push button or remote contact

Panel Cutout: 0.88"H x 1.77"W (22.22 x 45 mm)

Bezel: 1.1"H x 2.00"W x 1.64"D (27.9 x 50.8 x 41.6 mm)

Operating Temperature: 32° to 122°F (0° to 50°C)

Weight: 0.11 lb (0.05 Kg)

Warranty: 2 years from data of shipment

product series features

0.35 in. (8.9 mm) High LCD Digits, reflective or transmissive with yellow/green or red backlighting (6-26 VDC power supply required for version with LED backlighting)
Internal Lithium Battery provides up to 7 years of typical uninterrupted operation
Count speeds up to 10 KHZ
9 Programmable time ranges
Contact, logic, or open collector inputs
Standard wire connections or optional plug-in terminal block
NEMA 4X/IP65 sealed front bezel that fits 1/32 DIN cut-out

more information & related documents

Series Description

The Red Lion CUB7 Series is an 8-digit LCD counter/timer. The lithium battery provides years of trouble-free service. Two wires are all that are necessary to totalize consumption, flow data, or run-time data. No external power supply is necessary.

Kele Description

COUNTER LOW VOLT REFLECTIVE

Manufacturer

Red Lion
