SGD-35-M | Lascar Electronics | Alarms & Indication

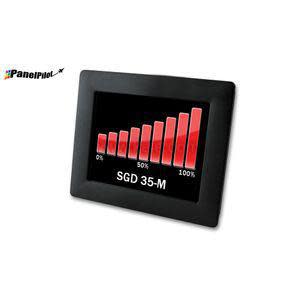

Panelpilot Display 3.5 in., TFT Color, 0-40Vdc

Manufacturer:Lascar Electronics

MPN:SGD-35-M

SKU:SGD-35-M

list price:

330.18

165.09

(login for better pricing)

availability:Usually Ships in Less Than 5 Business Days

add to cart

view product datasheet view installation instructions view catalog page

product specifications

Description

Panelpilot Display 3.5 in., TFT Color, 0-40Vdc

Short Description

PANELPILOT DISPLAY 3.5 in., TFT COLOR, 0-40VDC

product family features

2.4" or 2.8" color TFT-LCD screen for high visibility

Free PanelPilot software saves money

Simple USB cable connection for quick setup

6 standard meter types, selectable colors, scales, and labels for display flexibility

Splash screen accepts common picture files and allows customization

Snap-in panel mount for fast installation

NEMA 4X enclosure option with single or double display mounting

more information & related documents

Family Description

The Lascar Electronics SGD-24, -28 Series PanelPilot Smart Graphics Display is a configurable panel-mount analog input display with selectable graph colors, input signal scales, and meter display types. It can be used to display any proportional control or transmitter signal represented by an analog voltage signal between 0 to 40 VDC. It is easily and quickly field-configured using simple software, via a USB cable, or is available preconfigured from Kele. It has a customizable splash screen and comes in a 2.4″ or 2.8″ screen size. A NEMA 4X enclosure is also available which can house one or two displays, preassembled at Kele or separately available for field installation.

Kele Description

PANELPILOT DISPLAY 3.5 IN, TFT COLOR, 0-40VDC

Manufacturer

Lascar Electronics

Related Documents

SGD-24 Spec Sheet
PDF - SG-24 Configuration Worksheet.pdf

SG-24 Configuration Worksheet
