SGD 28-M | Lascar Electronics | Alarms & Indication

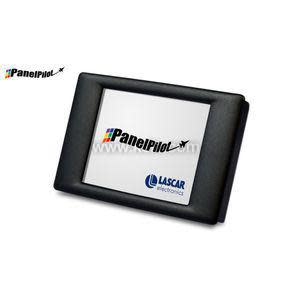

Panelpilot Display 2.8 in., TFT Color, 0-40Vdc

Brand:Lascar Electronics

MPN:SGD 28-M

SKU:SGD-28-M

List Price:

$365.00

Today's Price:

$189.80



Availability: 5 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Mount

Snap-In Mount

Supply Voltage

0-40 VDC

Type

Display Panel

Display

Double Display

product series specifications

    Supply Voltage:
  • 4 to 30 VDC @ 35 mA
    Accuracy:
  • 0.05% typical, 0.1% maximum
    Input Signal:
  • 0/2-10 VDC, 4-20mA (with resistor) 0-40 VDC max
    Wire Type:
  • Screw terminals, 16 to 26 AWG
    Display Type:
  • Thin Film Transistor (TFT) LCD
    SGD-24:
  • 2.4 inch diagonal 320 x 240 pixels,16-bit color
    SGD-28:
  • 2.8 inch diagonal 320 x 240 pixels, 16-bit color
    Interface:
  • Compatible with Windows XP, 2000, Vista, Windows 7, mini USB cable connection
    Sample Intervals:
  • 3 samples per second
    Panel Cutout:
    SGD-24:
  • 1.81"H x 2.91"W (4.60 x 7.40 cm) 0.11‚Ä= (3 mm) maximum panel thickness
    SGD-28:
  • 2.15"H x 3.43"W (5.45 x 8.70 cm) 0.11‚Ä= (3 mm) maximum panel thickness
    Operating Temperature:
  • 32° to 104°F (0° to 40°C)
    Additional Specifications:
  • Meter choices- Bar graph, analog needle, digital readout, combinations
    Enclosure Rating:
  • NEMA 1 standard NEMA 4X optional
    Dimensions:
    SGD-24:
  • 1.9"H x 3.0"W x 0.7"D (4.8 x 7.6 x 1.8 cm)
    SGD-28 :
  • 2.2"H x 3.5"W x 0.8"D (5.7 x 8.9 x 1.9 cm)
    NEMA 4X enclosure :
  • 6.0"H x 6.0"W x 3.0"D (15.2 x 15.2 x 7.6 cm)
    Weight:
    SGD-24:
  • 0.11 lb (0.05 kg)
    SGD-28:
  • 0.14 lb (0.06 kg)
    Approvals:
  • CE, RoHS
    Warranty:
  • 1 year

product series features

  • 2.4 in. or 2.8 in. color TFT-LCD screen for high visibility
  • Free PanelPilot software saves money
  • Simple USB cable connection for quick setup
  • 6 standard meter types, selectable colors, scales, and labels for display flexibility
  • Splash screen accepts common picture files and allows customization
  • Snap-in panel mount for fast installation
  • NEMA 4X enclosure option with single or double display mounting

more information & related documents

Series Description

The Lascar Electronics SGD-24, -28 Series PanelPilot Smart Graphics Display is a configurable panel-mount analog input display with selectable graph colors, input signal scales, and meter display types. It can be used to display any proportional control or transmitter signal represented by an analog voltage signal between 0 to 40 VDC. It is easily and quickly field-configured using simple software, via a USB cable, or is available preconfigured from Kele. It has a customizable splash screen and comes in a 2.4 in. or 2.8 in. screen size. A NEMA 4X enclosure is also available which can house one or two displays, preassembled at Kele or separately available for field installation.

Kele Description

PANELPILOT DISPLAY 2.8 IN, TFT COLOR, 0-40VDC

Manufacturer

Lascar Electronics

Related Documents

PDF - SG-24 Configuration WorksheetSG-24 Configuration Worksheet
PDF - SGD-24 Spec SheetSGD-24 Spec Sheet
