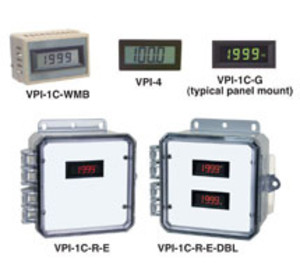

VPI-1CA-E-DBL | Kele | Alarms & Indication

Supply Voltage: Black: 24 VDC @ 10 mA

Supply Voltage: Color: 24 VDC @ 35 mA

Accuracy: 0.1% of scale plus one digit

Input Signal: 0-5 VDC or 0-10 VDC

Input Impedance: 400 kΩ

Range VPI-1/4: -1999 to 1999

Range VPI-3: -19999 to 19999

Digit Count VPI-1, VPI-4: 3-1/2 digits

Digit Count VPI-3: 4-1/2 digits

Digit Size VPI-1, VPI-3C:0.5" (1.27 cm)

Digit Size VPI-4: 1.0" (2.54 cm)

Digit Span (VPI-3): 2000 digits (20000 digits)

Decimal Point (VPI-3): Three positions or none, Four positions or none

Display Color: Black, amber, green, red

Zero Range (VPI-3): -1999 to 1999, -19999 to 19999, DA Only

Cutout Requirement VPI-1C: 1.00"H x 2.40"W (2.54 x 6.10 cm)

Cutout Requirement VPI-4: 1.77"H x 3.62"W (4.5 x 9.2 cm)

Panel Clearance: 1.0" (5.08 cm)

Operating Temperature: 32° to 122°F (0° to 50°C)

Operating Humidity: 95% non-condensing

Enclosure Rating: NEMA 1, NEMA 4X

Dimensions VPI-1C, VPI-3C: 1.10"H x 2.51"W (2.82 x 6.38 cm)

Dimensions VPI-4: 1.89"H x 3.62"W (4.8 x 9.6 cm)

Dimensions E (NEMA4X): 6.0"H x 6.0"W x 3"D (15.2 x 15.2 x 7.6 cm)

Dimensions WMB:2.12"H x 3.12"W x 1.75"D (5.4 x 7.94 x 4.45 cm)

Weight: 0.25 lbs (0.11 Kg)

Approvals: RoHS

Warranty: 1 year
