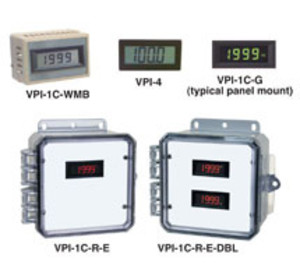

VPI-1C-E-DBL | Kele | Alarms & Indication
2 LCD INDICATORS W/ENCL
Brand:Kele
MPN:VPI-1C-E-DBL
SKU:VPI-1C-E-DBL
List Price:
$514.00
Today's Price:
$267.28
Log in for customized pricingproduct specifications
Type
Display Panel
Display
LCD
Supply Voltage (Nominal)
24 VDC
Mount
Snap-In Panel
product series specifications
Supply Voltage: Black: 24 VDC @ 10 mA
Supply Voltage: Color: 24 VDC @ 35 mA
Accuracy: 0.1% of scale plus one digit
Input Signal: 0-5 VDC or 0-10 VDC
Input Impedance: 400 kΩ
Display Color: Black, amber, green, red
Zero Range (VPI-3): -1999 to 1999, -19999 to 19999, DA Only
Panel Clearance: 1.0" (5.08 cm)
Operating Temperature: 32° to 122°F (0° to 50°C)
Operating Humidity: 95% non-condensing
Enclosure Rating: NEMA 1, NEMA 4X
Dimensions E (NEMA4X): 6.0"H x 6.0"W x 3"D (15.2 x 15.2 x 7.6 cm)
Dimensions WMB:2.12"H x 3.12"W x 1.75"D (5.4 x 7.94 x 4.45 cm)
Weight: 0.25 lbs (0.11 Kg)
Approvals: RoHS
Warranty: 1 year
product series features
- 0-5 or 0-10 VDC input signal
- 3-1/2 digit, easy to read LCD display (VPI-1, VPI-4)
- 4-1/2 digit, easy to read LCD display (VPI-3)
- Available in black amber, green and red digits
- Snap-in panel mounting
- NEMA 4 enclosure available
- Precalibrated before shipping
- Positive-to-negative indication
- Jumper selectable engineering unit display of °F, °C, PSI, %
more information & related documents
Series Description
The Kele VPI Series is a voltage (0-5V, 0-10V) input 24 VDC powered, 3-1/2 digit display. The VPI Series uses a voltage signal of 0-5 or 0-10 VDC that can be scaled to a span of 2000 digits within a range of -1999 to 1999. This display also features jumper selectable, built-in engineering units. The VPI-4 offers large, easy to read 1 in. (2.54 cm) digits.
Kele Description
2 LCD INDICATORS W/ENCL
Manufacturer
Kele
Related Documents
VPI Series Datasheet
