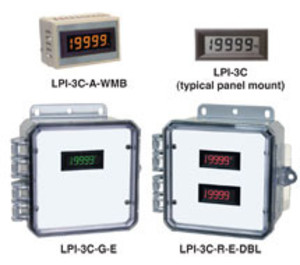

* product series image displayed

LPI-3C-E | Kele | Alarms & Indication

LCD INDICATOR W/ENCL

Brand:Kele

MPN:LPI-3C-E

SKU:LPI-3C-E

List Price:

$331.20

Today's Price:

$172.22

catalog page

Call 877.826.9045 for availability

product specifications

Type

Display Panel

Display

LCD

Enclosure Rating

NEMA 4X

Supply Voltage (Nominal)

24 VDC

Mount

Snap-In Panel

product series specifications

Supply Voltage: 24 VDC @ 35 mA for colored digits

Accuracy: 0.1% FS

Input Signal: Loop-powered 4-20 mA signal

Input Impedance: 300Ω nominal @ 24 VDC

Range: -19999 to +19999, D.A. Only

Digit Size: 0.5" (1.27 cm) LCD

Decimal Point: Four positions or none (1.0.0.0.0)

Panel Clearance: 1.97" (5.00 cm)

Cutout Requirement: 1.00"H x 2.40"W (2.54 x 6.10 cm)

Operating Temperature: 32° to 122°F (0° to 50°C)

Operating Humidity:95% non-condensing

Dimensions:

Display: 1.11"H x 2.51"W (2.82 x 6.38 cm)

E (NEMA 4X): 6.0"H x 6.0"W x 3.0"D (15.2 x 15.2 x 7.62 cm)

WMB: 2.12"H x 3.12"W x 1.75"D (5.4 x 7.94 x 4.45 cm)

Weight: 0.14 lb (0.06 kg) (Display only)

Approvals: RoHS, Except: (LPI-3CA)

Warranty: 1 year

product series features

Indication of 4-20 mA signal in desired scale
Optional, bright 4-1/2 digit LCD colored display
Available in black, amber, green, or red digits
Snap-in panel mounting
Easy-to-read digits
NEMA 4X enclosure available
Precalibrated for desired range
Negative-to-positive indication
Jumper-selectable engineering unit display

more information & related documents

Series Description

The Kele LPI-3C display is a 4-20 mA, brightly lit, 4-1/2 digit display. Along with standard black digits, amber, green, and red (powered by 24 VDC)are also available. The Model LPI-3C also features jumper-selectable built-in engineering units of °F, °C, PSI, %, or no units. For those units with colored digits, the same 24 VDC power supply can be used to provide power to the 4-20 mA loop and the display.

Kele Description

LCD INDICATOR W/ENCL
