LPI-3C

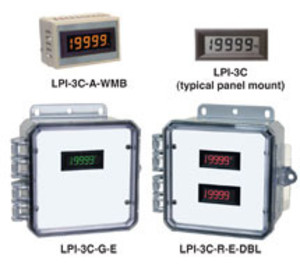

* product series image displayed

LPI-3C | Kele | Alarms & Indication

LOOP POWERED LCD INDICATOR

Brand:Kele

MPN:LPI-3C

SKU:LPI-3C

List Price:

$277.00

Today's Price:

$144.04



Availability: Usually Ships in Less Than 6 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

Snap-In Panel Mount

Supply Voltage

24 VDC

Type

Display Panel

Display

LCD

product series specifications

    Supply Voltage:
  • 24 VDC @ 35 mA for colored digits
    Accuracy:
  • 0.1% FS
    Input Signal:
  • Loop-powered 4-20 mA signal
    Input Impedance:
  • 300Œ© nominal @ 24 VDC
    Range:
  • -19999 to +19999, D.A. Only
    Digit Size:
  • 0.5" (1.27 cm) LCD
    Decimal Point:
  • Four positions or none (1.0.0.0.0)
    Panel Clearance:
  • 1.97" (5.00 cm)
    Cutout Requirement:
  • 1.00"H x 2.40"W (2.54 x 6.10 cm)
    Operating Temperature:
  • 32° to 122°F (0° to 50°C)
    Operating Humidity:
  • 95% non-condensing
    Dimensions:
    Display:
  • 1.11‚Ä=H x 2.51‚Ä=W
    :
  • (2.82 x 6.38 cm)
    E (NEMA 4X):
  • 6.0‚Ä=H x 6.0‚Ä=W x 3.0"D
    :
  • (15.2 x 15.2 x 7.62 cm)
    WMB:
  • 2.12‚Ä=H x 3.12‚Ä=W x 1.75‚Ä='D
    :
  • (5.4 x 7.94 x 4.45 cm)
    Weight:
  • 0.14 lb (0.06 kg) (Display only)
    Approvals:
  • RoHS, Except: (LPI-3CA)
    Warranty:
  • 1 year

product series features

  • Indication of 4-20 mA signal in desired scale
  • Optional, bright 4-1/2 digit LCD colored display
  • Available in black, amber, green, or red digits
  • Snap-in panel mounting
  • Easy-to-read digits
  • NEMA 4X enclosure available
  • Precalibrated for desired range
  • Negative-to-positive indication
  • Jumper-selectable engineering unit display

more information & related documents

Series Description

The Kele LPI-3C display is a 4-20 mA, brightly lit, 4-1/2 digit display. Along with standard black digits, amber, green, and red (powered by 24 VDC)are also available. The Model LPI-3C also features jumper-selectable built-in engineering units of °F, °C, PSI, %, or no units. For those units with colored digits, the same 24 VDC power supply can be used to provide power to the 4-20 mA loop and the display.

Kele Description

LOOP POWERED LCD INDICATOR

Manufacturer

Kele

Related Documents

PDF - LPI-3C, LPI-3C-A, LPI-3C-G or LPI-3C-R DatasheetLPI-3C, LPI-3C-A, LPI-3C-G or LPI-3C-R Datasheet
