LPI-1CR

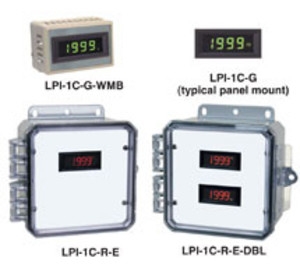

* product series image displayed

LPI-1CR | Kele | Alarms & Indication

LCD INDICATOR W/ RED DIGITS

Brand:Kele

MPN:LPI-1CR

SKU:LPI-1CR

List Price:

$324.00

Today's Price:

$168.48



Availability: 48 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

Snap-In Panel Mount

Supply Voltage

24 VDC

Type

Display Panel

Display

LCD

product series specifications

    Supply Voltage:
  • 24 VDC @ 35 mA
    Accuracy:
  • 0.1% of scale
    Input Signal:
  • 4-20 mA loop powered
    Input Impedance:
  • 300Œ© nominal @ 24 VDC
    Range:
  • -1999 to 1999, D.A. Only
    Digit Size:
  • 0.5" (1.27 cm)
    Decimal Point:
  • Three positions or none (1.0.0.0)
    Display Color:
  • Amber
    Display Size:
  • 0.5" (1.27 cm)
    Panel Clearance:
  • 1.97" (5.00 cm)
    Cutout Requirement:
  • 1.00"H x 2.40"W (2.54 x 6.10 cm)
    Operating Temperature:
  • 32° to 122°F (0° to 50°C)
    Operating Humidity:
  • 95% non-condensing
    Dimensions:
    Display :
  • 1.11"H x 2.51"W (2.82 x 6.38 cm)
    E (NEMA 4x) :
  • 6.0"H x 6.0"W x 3.0"D (15.2 x 15.2 x 7.62 cm)
    WMB:
  • 2.12''H x 3.12''W x 1.75''D (5.4 x 7.94 x 4.45 cm)
    DBL :
  • 6.0"H x 6.0"W x 3.0"D (15.2 x 15.2 x 7.62 cm)
    Weight:
  • 0.14 lb (0.06 kg) (Display only)
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • Indication of 4-20 mA signal in desired scale
  • Bright 3-1/2 digit LCD display
  • Available in amber, green, and red
  • Snap-in panel mounting
  • Easy-to-read digits
  • NEMA 4X enclosure available
  • Precalibrated for desired range
  • Negative-to-positive indication
  • Jumper selectable engineering unit display

more information & related documents

Series Description

The Kele LPI-1CA, G, and R Series are 4-20 mA, 24 VDC-powered, brightly lit 3-1/2 digit color LCD displays, available with amber, green, or red digits. Models LPI-1CA, G, and R also feature jumper-selectable built-in engineering units of °F, °C, PSI, %, or no units. The same 24 VDC power supply can be used to provide power to the 4-20 mA loop and the display.

Kele Description

LCD INDICATOR W/ RED DIGITS

Manufacturer

Kele

Related Documents

PDF - LPI-1C-A, LPI-1C-G, LPI-1C-R DatasheetLPI-1C-A, LPI-1C-G, LPI-1C-R Datasheet
