LPI-1C-E-DBL

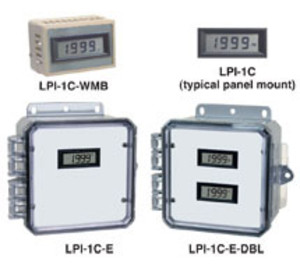

* product series image displayed

LPI-1C-E-DBL | Kele | Alarms & Indication

2 LCD INDICATORS W/ENCL

Brand:Kele

MPN:LPI-1C-E-DBL

SKU:LPI-1C-E-DBL

List Price:

$660.00

Today's Price:

$343.20



Availability: 11 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

Flush Mount

Supply Voltage

24 VDC

Type

Display Panel

Enclosure

NEMA 4X

Display

LCD

product series specifications

    Accuracy:
  • 0.1% of scale
    Input Signal:
  • 4 - 20 mA loop-powered
    Input Impedance:
  • 300Œ© nominal @ 24 VDC
    Range:
  • -1999 to 1999, D.A. only
    Digit Size:
  • 0.5" (1.27 cm)
    Decimal Point:
  • Three positions or none (1.0.0.0)
    Display Color:
  • Black
    Panel Clearance:
  • 1.97" (5.00 cm)
    Cutout Requirement:
  • 1.00" H x 2.40" W (2.54 x 6.10 cm)
    Operating Temperature:
  • 32° to 122°F (0° to 50°C)
    Operating Humidity:
  • 95% non-condensing
    Dimensions:
    Display:
  • 1.11" H x 2.51" W (2.82 x 6.38 cm)
    E (NEMA 4X):
  • 6.0‚Ä=H x 6.0‚Ä=W x 3.0‚Ä=D
    :
  • (15.2 x 15.2 x 7.62 cm)
    WMB:
  • 2.12‚Ä=H x 3.12'‚Ä=W x 1.75‚Ä=D
    :
  • (5.4 x 7.94 x 4.45 cm)
    Weight:
  • 0.14 lb (0.06 kg) (display only)
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • Indication of 4-20 mA signal in desired scale
  • 3-1/2 digit LCD display
  • Snap-in panel mounting
  • Easy-to-read digits
  • NEMA 4X enclosure available
  • Precalibrated for desired range
  • Negative-to-positive indication
  • Jumper-selectable engineering unit display

more information & related documents

Series Description

The LPI-1C-A, LPI-1C-G, LPI-1C-R LCD display panels are brightly lit 3-1/2 digit color LCD panel displays. Ideal for building automation systems, BAS, and HVAC applications, these panels display a 4-20 mA signal and use 24 Volt DC power. Each panel display is available with amber, green, or red digits. Models LPI-1CA, G, and R also feature jumper-selectable built-in engineering units of °F, °C, PSI, %, or no units. The same power supply can be used to provide power to the 4-20 mA loop and the display panel.

Kele Description

2 LCD INDICATORS W/ENCL

Manufacturer

Kele

Related Documents

PDF - LPI-1C DatasheetLPI-1C Datasheet
