BDR-999-B-120

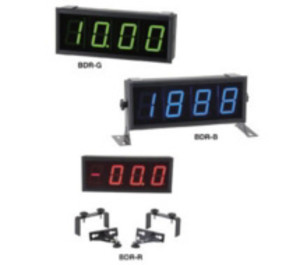

* product series image displayed

BDR-999-B-120 | Kele | Alarms & Indication

BLUE LED 3-1/2 DIGIT DISPLAY 2.3 HIGH 120 VAC

Brand:Kele

MPN:BDR-999-B-120

SKU:BDR-999-B-120

List Price:

$843.00

Today's Price:

$438.36



Availability: Usually Ships in Less Than 4 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Mount

Wall/Ceiling/Panel Mount

Supply Voltage

120 VAC

Type

Display Panel

Color

Blue

Display

LED

product series specifications

    Supply Voltage:
  • 90-240 VAC, 12 VA / 10.5 - 30 VAC/VDC 6VA
    Accuracy:
  • ±1% full scale plus 1 count
    Input Current:
  • 4-20 mA, 300‚Ѷ
    Input Voltage DC:
  • 0-5 VDC, 0-10 VDC, 1 M‚Ѷ
    Range:
  • -1999 to 1999
    Input Monitor:
  • DC power (no offset, 10 M‚Ѷ 0-200 mVDC, 0-2 VDC, 0-20 VDC
    Digit Span:
  • 3-1/2 digit
    Decimal Point:
  • Off, DP1, DP2, DP3 (1999, 199.9, 19.99, 1.999)
    Display Color:
  • Red, green, blue
    Display Size:
  • 2.3" (5.8 cm)
    Display Type:
  • Seven-segment LED
    Calibration:
  • Zero and span, non-interactive
    Cutout Requirement:
  • 4.0‚Ä=H x 10.4‚Ä=W x 2.0‚Ä=D
    :
  • (10.0 x 26.4 x 5.0 cm)
    Mounting:
  • Panel: Steel U-bracket
    :
  • Wall/ceiling: Steel swivel bracket
    Operating Temperature:
  • 14° to 122‚Ñâ (-10° to 50‚ÑÉ)
    Operating Humidity:
  • 5-95% RH non-condensing
    Enclosure Rating:
  • NEMA 1, aluminum and plastic
    Dimensions:
  • 4.2‚Ä=H x 10.6‚Ä=W x 2.2‚Ä=D
    :
  • (10.6 x 27.0 x 5.5 cm)
    Weight:
  • 2.8 lb (1.3 kg)
    Approvals:
  • RoHS
    Warranty:
  • 1 year

product series features

  • Large 2.3 in. (5.8 cm) digital display
  • LED colors in red, green or blue
  • 3-1/2 digit with negative signal as needed
  • Standard signal inputs: 4-20 mA, 0-10 VDC, 0-5 VDC
  • Wall, ceiling or panel mount
  • Non-interactive zero and span pots
  • Pre-calibration

more information & related documents

Series Description

The Kele BDR Series Big Display Readout has large 2.3 in. size LED digits. It provides 3-1/2 digits and comes in three bright LED colors: red, green or blue. The BDR has a selectable decimal point position and accommodates negative sign readouts. The readouts are in linear proportion to the 4-20mA, 0-10VDC, 0-5VDC signal inputs or a voltage monitor input from 0-20VDC. These displays are easy to field calibrate with non-interactive zero and span pots as well as free pre-calibration service from Kele at time of order.

Kele Description

BLUE LED 3-1/2 DIGIT DISPLAY 2.3 HIGH 120 VAC

Manufacturer

Kele

Related Documents

PDF - BDR Series Installation SheetBDR Series Installation Sheet
