SS2025PO-EN | STI | Alarms & Indication

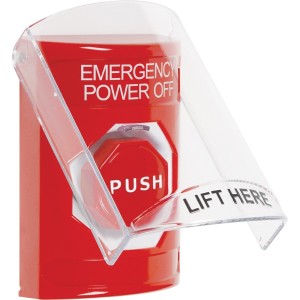

Momentary push button switch, with shield, is housed in a curved shell with EMERGENCY POWER OFF messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). For indoor use, two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC are included. Part of the Stopper Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.

Brand:STI

MPN:SS2025PO-EN

SKU:SS2025PO-EN

List Price:

$184.00

Today's Price:

$95.68

product datasheet

installation instructions

Lead time of 10 days. Chat with Kele experts now

product specifications

Color

Red

Type

Push Button

Material

Polycarbonate

Display

Emergency Power Off

Approvals

UL/cUL Listed,ADA Compliant

Dimensions

4.87 x 3.25 x 1.62

Features

Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC,Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white),Protective cover helps protect button from damage and accidental activation

Supply Voltage (Nominal)

125 VAC,250 VAC

Switch Action

Momentary Illuminated

Mount

Wall

product series specifications

Models SS2xx0, SS2xx1, SS2xx3, SS2xx4:

Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC.

Standard switch includes one N.O. and one N.C. contact.

Holds up to three sets of isolated contacts.

Models SS2xx2, SS2xx5, SS2xx9:

Two (2) Form C contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC

Models SS2xx6:

2 momentary independent Form C contacts, DPDT

Rated at: 10A, 125/250VAC; 1/2 HP

6A, 30 VDC

100,000 operations

Temperature: 32°F to 120°F (0°C to 49°C)

Models SS2xx8:

Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%)

Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C).

Timer life of over 1,000,000 operations.

Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate.

Ideal for security applications.

1 Form Z, 1 N.O. and 1 N.C. contact.

product series features

Multipurpose push button switches cover a wide range of applications both indoors and outdoors
Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
Unique, curved design helps protect against accidental activation
Station housing molded of tough polycarbonate
UL Listed to U.S. and Canadian safety standards
Models used with LT-1UL Latching Timer Module are listed for access control
Stainless steel backplate
Push buttons are ADA Compliant (excludes "3" key switch button)

more information & related documents

Series Description

These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They're called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.

Kele Description

RED STOPPER STATION, ILLUMINATED, EMERGENCY POWER

Manufacturer

STI
