SS2005PO-EN | STI | Alarms & Indication

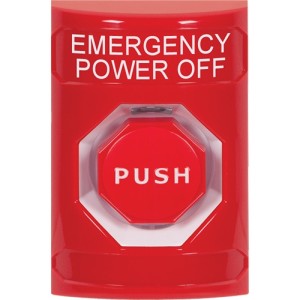

Momentary push-button switch housed in a curved enclosure with EMERGENCY POWER OFF messaging and equipped with a multicolor 12–24 VAC/VDC LED status bar that displays red, green, or white. Designed for indoor use, it includes two Form “C” DPDT contacts rated 10 A at 125/250 VAC and 6 A at 30 VDC. The curved housing helps reduce accidental activation, and as part of the Stopper Station series, it delivers durable performance for a wide range of control and safety applications.
Brand:STI
MPN:SS2005PO-EN
SKU:SS2005PO-EN
List Price:
$168.00
Today's Price:
$87.36
Log in for customized pricingproduct specifications
Color
Red
Type
Push Button
Material
Polycarbonate
Display
Emergency Power Off
Approvals
UL/cUL Listed,ADA Compliant
Dimensions
4.87 x 3.25 x 1.62
Features
Two (2) Form "C" contacts rated 10 amp @125/250 VAC, 1/2 HP 30 VDC, 6A
Supply Voltage (Nominal)
125 VAC,250 VAC
Switch Action
Momentary Illuminated
Mount
Wall,Surface
Light Type
LED illuminates green, red or white
product series specifications
Models SS2xx0, SS2xx1, SS2xx3, SS2xx4:
Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC.
Standard switch includes one N.O. and one N.C. contact.
Holds up to three sets of isolated contacts.
Models SS2xx2, SS2xx5, SS2xx9:
Two (2) Form C contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC
Models SS2xx6:
2 momentary independent Form C contacts, DPDT
Rated at: 10A, 125/250VAC; 1/2 HP
6A, 30 VDC
100,000 operations
Temperature: 32°F to 120°F (0°C to 49°C)
Models SS2xx8:
Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%)
Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C).
Timer life of over 1,000,000 operations.
Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate.
Ideal for security applications.
1 Form Z, 1 N.O. and 1 N.C. contact.
product series features
- Multipurpose push button switches cover a wide range of applications both indoors and outdoors
- Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
- Unique, curved design helps protect against accidental activation
- Station housing molded of tough polycarbonate
- UL Listed to U.S. and Canadian safety standards
- Models used with LT-1UL Latching Timer Module are listed for access control
- Stainless steel backplate
- Push buttons are ADA Compliant (excludes "3" key switch button)
more information & related documents
Series Description
These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They're called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.
Kele Description
RED STOPPER STATION, MOMENTARY SWITCH, EMERGENCY P
Manufacturer
STI
SS2xx0, xx1, xx3, xx4 Installation
