WPS-MP-HS-CLM

WPSMPHSCLM | Pilla Electrical Products | Alarms & Indication

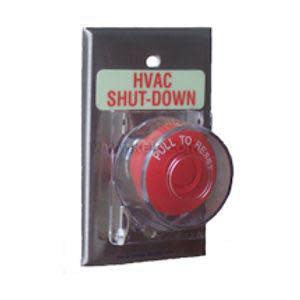

Plant Emergency Station Maintenance Push Pull HVAC Shut-Down W/Cover

Brand:Pilla Electrical Products

MPN:WPSMPHSCLM

SKU:WPS-MP-HS-CLM

List Price:

$999.00

Today's Price:

$519.48



Availability: 26 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Mount

Wall Plated Box Mount

Supply Voltage

600 V, 10A AC

Type

Maintained

Enclosure

NEMA 1

Display

Emergency - Hvac Shut Down

NEMA Rating

NEMA 1

Switch Action

Maintained

Legend

HVAC Shut Down

product series specifications

    Contact Rating:
  • 600 V at 10A AC 2.5A DC
    Additional Specifications:
  • Related Products Note: Three contact blocks can be used for a depth of 1-5/8" (42 mm). Three more can be added for a depth of 2-5/8" (67 mm).
    Approvals:
  • UL File E158147
    Enclosure Rating:
  • NEMA 1
    Warranty:
  • 1 year

product series features

  • Order contacts separately for wiring flexibility
  • Hinged lockout lids options
  • Single-gang wall or handy box mounting

more information & related documents

Series Description

The WPS Series plate-mounted operator stations mount on a single-gang wall box or a standard handy box. Designed specifically for building automation systems, BAS, applications, these NEMA 1 operator stations come with brushed stainless steel plate. Many options are available for the WPS Series in addition to the models shown on our catalog page. Mounted on brushed stainless steel wall plate, hinged lockout lids options, special configurations and labeling are available. Select single-gang wall or handy box mounting. Contacts rated 600 volt at 10 amp AC and 2.5 amp DC. One-year warranty. The WPS-BR units do NOT use the standard PILNCCB/PILNOCB contact blocks, they use the PILKBR units which are a different design and come standard with 1 NO and 1 NC.

Kele Description

PLT EMER STA MAINT PUSH PULL HVAC SHUT-DOWN W/CVR

Manufacturer

Pilla Electrical Products
