ST120SLST | Pilla Electrical Products | Alarms & Indication
STOP N4X/12 SURFACE PUSH-PULL
Brand:Pilla Electrical Products
MPN:ST120SLST
SKU:ST120SLST
List Price:
$692.00
Today's Price:
$359.84
Log in for customized pricingTech Tip
These stations do not include contact blocks. Each station can handle up to (6) of any combination of PILNCCB (Normally Closed) and/or PILNOCB (Normally Open) blocks which must be ordered separately.
These stations do not include contact blocks. Each station can handle up to (6) of any combination of PILNCCB (Normally Closed) and/or PILNOCB (Normally Open) blocks which must be ordered separately.
Was this helpful?
product specifications
Type
Push Pull
Display
Emergency - Stop
Enclosure Rating
NEMA 4X,NEMA 12
Supply Voltage (Nominal)
600 VAC
Mount
Surface
product series features
- Luminous faceplate
- Access control lid covers
- Custom labels
more information & related documents

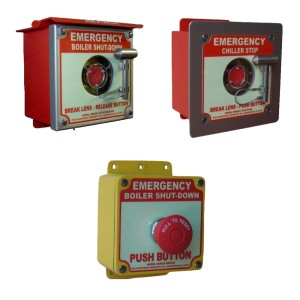

Series Description
The ST120 Series operator station can be used to shut down equipment and/or initiate alarms during emergency conditions. The operator stations provide emergency disconnect capabilities with contacts rated 600 volts at 10 amps with AC power and 2.5 amps with DC. These operating stations are invaluable in building automation systems. All models carry a one-year warranty.UL file is E158147.
Kele Description
PUSH PULL STA N4X/12 SUR PULL TO RESET STOP
Manufacturer
Pilla Electrical Products
