MNSTLGN1OO | Pilla Electrical Products | Alarms & Indication
STATION,METAL,2 MAINT PB,GENERATOR,ON/OFF
Brand:Pilla Electrical Products
MPN:MNSTLGN1OO
SKU:MNSTLGN1OO
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
Maintained
Display
Generator - On/Off
Enclosure Rating
NEMA 1
Supply Voltage (Nominal)
600 VAC
Mount
Surface
product series specifications
Contact Rating: 600V, 10A continuous @120 VAC, 0.5A continuous @24 VDC
Contact Configuration: SPST-N.C. and SPST-N.O.
Conduit Connection:
MNSTxxN1x/MST1xxN1x: Knockouts in top, bottom & back for 1/2" (1.27 cm) and 3/4" conduit
Mounting:
MNSTx/MST1x: Surface mount, external mounting tabs top and bottom
MNSTxxN1x/MST1xxN1x: Surface mount, two mounting holes in the back
Operating Temperature: -13° to 158°F (-25° to 70°C)
Enclosure Rating:
MNSTx/MST1x: NEMA 4X/4/12/3/1, Non-metallic backbox
MNSTxxN1x/MST1xxN1x: NEMA 1, Metal backbox
Dimensions:
MNSTx/MST1x: 4"W x 4"H x 2.4"D (10.16 x 10.16 x 6.09 cm)
MNSTxxN1x/MST1xxN1x: 4"W x 4"H x 3"D (10.16 x 10.16 x 7.62 cm)
Weight:
MNSTx/MST1x: 1 lb (0.45 kg)
MNSTxxN1x/MST1xxN1x: 2.5 lbs (1.13 kg)
Approvals: UL Listed file #E158147, cUL Listed
Warranty: 1 year
product series features
- Models with non-metallic NEMA 4X and 12 enclosures for outdoor and wet locations
- Models with metal NEMA 1 enclosures for indoor and dry locations
- Bold, reflective legends on white enamel aluminum face plate
- Two maintained/interlocked push buttons on MNST models
- Two momentary/non-interlocked or momentary/non-interlocked, push buttons on MST1 models
- UL listed, File E158147
more information & related documents
Series Description

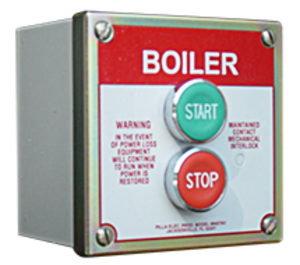

The Pilla Electrical Products MNST and MST1 Series Power Control Stations offer two push-button control for a variety of HVAC and other equipment. It comes with two round push-buttons (one green and one red) and one set of normally open and normally closed contacts.
Kele Description
STATION,METAL,2 MAINT PB,GENERATOR,ON/OFF
Manufacturer
Pilla Electrical Products
