ECW22H-H1P1-27MV61 | C3 CONTROLS | Alarms & Indication
22MM IEC PILOT DEVICE, 1 POS, ILLUM DUAL PUSHBUTTON, 1NC1NO, FLUSH LENS, 20-277V ACDC, LED STARTSTOP
Brand:C3 CONTROLS
MPN:ECW22H-H1P1-27MV61
SKU:ECW22H-H1P1-27MV61
List Price:
$132.00
Today's Price:
$68.64
Log in for customized pricingproduct specifications
Type
Push Button
Display
Start/Stop
Supply Voltage (Nominal)
24 VAC,24 VDC,120 VAC,277 VAC
product series specifications
Pilot Devices:
Make / Break Rating: 7200VA (AC) / 69VA (DC)
Ith-Thermal Current: 10A (AC) / 2.5A (DC)
NEMA Rating: Type 1, 2, 3, 3R, 4/4X, 12, 13
IP Rating: IP66
Operating Temperature: -40 to +55°C / -40 to +131°F
AWG Conductor: 22-12 CU (Copper only - solid & stranded) [.5 - 4mm2] One or two wires permitted per termination
Recommended Torque: 7 - 10 Lb-in. [.8 Nm]
Mechanical Operations:
Momentary: 5,000,000
Maintained: 100,000
Dual: 1,000,000
Emergency Stop (EN418): 100,000
Selector Switch: 500,000
Contact Blocks: 5,000,000
Construction:
Operator Construction: Thermoplastic Polyester and Polyester Blends (UV)
Lens Construction: Polycarbonate (UV)
CAM and Bearing Parts: Polycarbonate (UV)
Seals: Neoprene gaskets, BUNA N - Rubber - Teflon coated, Thermoplastic - Elastomer molded seals
Push Pull Bearings: Brass (plated and unplated)
Detents for Maintained Devices: Brass (plated and unplated)
Springs: Stainless steel throughout
LED Voltage Tolerance: ±10%
Hours of Illumination (LED): 100,000
Enclosure:
Construction: Polycarbonate
Assembly Screw: Stainless steel
Gasket: Formed in place
Conduit Entries: 2 Lateral M20, (1/2 NPT) & 2 Base M16
Installation Torque (Cover to Base): 1 - 1.4 Nm [8 - 12 Lb-in.]
Operating Temperature: -40 to +55°C / -40 to +131°F
product series features
- Control stations available as standard pre-configured or custom assemblies
- Three enclosure frame sizes in up to three positions, and two colors; grey and yellow
- Horizontal and vertical conduit entry orientations
- A variety of operator styles and colors available in both non-illuminated and illuminated
- Multi-voltage and full-voltage light units in a wide range of voltages
- Legend plates available with a variety of designation options, including blank
- Fully assembled and read to use out of the box
more information & related documents
Series Description

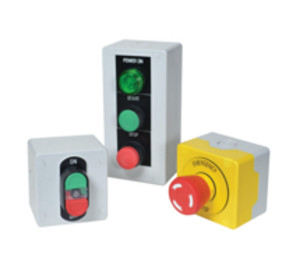

c3controls factory assembled 22mm IEC compact control stations and emergency stop stations meet UL standards requirements, and provide a complete solution for both indoor and outdoor applications and in extreme environments.
Kele Description
22MM IEC PILOT DEVICE, 1 POS, ILLUM DUAL PUSHBUTTON, 1NC1NO, FLUSH LENS, 20-277V ACDC, LED STARTSTOP
Manufacturer
C3 CONTROLS
c3controls Product Profile 22mm IEC Pilot Devices
