STI-13000NC | STI | Alarms & Indication

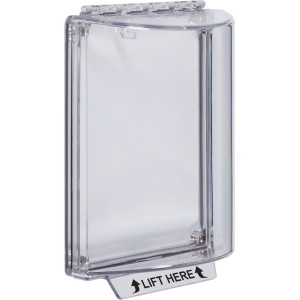

Clear protective polycarbonate dome cover without horn that helps protect devices such as pull stations, keypads for entry systems, intercom stations, emergency buttons, electrical light switches, duplex plugs, etc., without restricting legitimate operation. For indoor/outdoor use, the versatile flush mounted cover offers excellent protection against physical damage (both accidental and intentional), dust and grime as well as severe environments inside and out. Molded of clear, thick, UV-stabilized polycarbonate material, the cover is backed by a three year guarantee against breakage in normal use.
Brand:STI
MPN:STI-13000NC
SKU:STI-13000NC
List Price:
$118.00
Today's Price:
$61.36
Log in for customized pricingproduct specifications
Color
Clear
Type
Protective Polycarbonate Cover
Material
Polycarbonate
Cover Type
Indoor/outdoor polycarbonate cover
Features
Helps protect devices against vandalism and accidental damage,Without horn, horn housing and label,Flush mount,Sized to fit most pull stations
product series specifications
Models SS2xx0, SS2xx1, SS2xx3, SS2xx4:
Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC.
Standard switch includes one N.O. and one N.C. contact.
Holds up to three sets of isolated contacts.
Models SS2xx2, SS2xx5, SS2xx9:
Two (2) Form C contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC
Models SS2xx6:
2 momentary independent Form C contacts, DPDT
Rated at: 10A, 125/250VAC; 1/2 HP
6A, 30 VDC
100,000 operations
Temperature: 32°F to 120°F (0°C to 49°C)
Models SS2xx8:
Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%)
Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C).
Timer life of over 1,000,000 operations.
Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate.
Ideal for security applications.
1 Form Z, 1 N.O. and 1 N.C. contact.
product series features
- Multipurpose push button switches cover a wide range of applications both indoors and outdoors
- Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
- Unique, curved design helps protect against accidental activation
- Station housing molded of tough polycarbonate
- UL Listed to U.S. and Canadian safety standards
- Models used with LT-1UL Latching Timer Module are listed for access control
- Stainless steel backplate
- Push buttons are ADA Compliant (excludes "3" key switch button)
more information & related documents
Series Description
These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They're called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.
Kele Description
UNIVERSAL STOPPER FLUSH MOUNT
Manufacturer
STI
SS2 Series Datasheet
