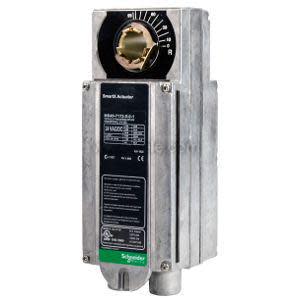

MS40-7173

MS40-7173 | Schneider Electric Buildings | Actuators & Dampers

Act (MS40-7173): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, 22-30 VDC/24 VAC/VDC, App, 150 in-lb, Rotary, N1/N4, SmartX

Brand:Schneider Electric Buildings

MPN:MS40-7173

SKU:MS40-7173

List Price:

$1,909.22

Today's Price:

$992.79



Availability: 3 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

24 VAC

Torque

150 in-lb

Supply Va

5.4 VA

Control Signal

Proportional, Modulating

product series specifications

    Input Impedance:
  • 80 k‚Ѷ @ 0/2-10 VDC; 500‚Ѷ @ 4-20 mA (proportional models)
    Motor:
  • DC with brushes (MA40-70xx, MA41-70xx, MF40-70xx, MF41-70xx); Brushless DC (all others)
    Wiring:
  • 3-foot cable, 18 AWG
    Conduit Connection:
  • 1/2" FNPT
    Action:
  • Mounting orientation direct/reverse acting
    Rotation:
  • 95° ±5°
    Manual Override:
  • Crank (MA41, MF41, MS41 models)
    Noise:
  • <60 db @ 3' (1m)
    Resolution:
  • 100 steps
    Life Expectancy:
  • 60,000 cycles
    Operating Temperature:
  • -22° to 140°F (-30° to 60°C)
    Operating Humidity :
  • 15 to 95% RH
    Enclosure Rating:
  • NEMA 2 (IP54) (35, 60, 133 in-lb models), NEMA 4 (IP56) (150 in-lb models)
    Approvals:
  • CE, UL File # E9429
    Warranty:
  • 5 years

product series features

  • Direct mount to round or square shaft
  • NEMA 4 models available
  • Overload protection on all models

more information & related documents

Series Description

The Schneider Electric SmartX Series direct coupled, spring return actuators accept two-position, tri-state, or proportional control signals from a DDC control system or a thermostat and are designed to provide years of trouble-free control for HVAC dampers.

Kele Description

SR 2-10V 4-20MA 150IN-LB 24VAC, NEMA 4

Manufacturer

Schneider Electric Buildings
