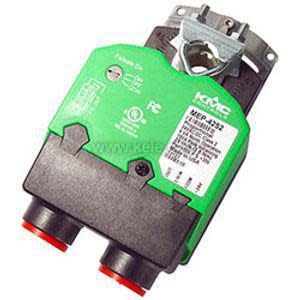

MEP-4552 | KMC Controls | Actuators & Dampers
ACTUATOR; Proportional; 24VAC/VDC; Fail Safe; 45 in-lb
Brand:KMC Controls
MPN:MEP-4552
SKU:MEP-4552
List Price:
$571.00
Today's Price:
$296.92
Log in for customized pricingproduct specifications
Supply Va
4 VA
Torque
45 in-lb
Supply Voltage (Nominal)
24 VAC
Control Signal
Analog
product series specifications
Control Signal: Floating, Proportional, 2-Position
Wiring: 14-22 AWG, 12-26 AWG
Wiring Terminations: Screw Terminals, Cable Pigtail
Conduit Connection: Yes, dual
Operating Torque: 25 in-lbs to 320 in-lbs
Rotation: 95 degrees
Drive Time: 25 to 90 seconds
Operating Temperature: -22 to 131°F (-30 to 55°C)
Operating Humidity: 5-95% RH non-condensing
Maximum Shaft Diameter: MEP-4000 Series: 1/4" to 5/8" round, 1/4" to 7/16" square; MEP-7000 Series: 3/8" to 1.05" round, 5/16" to 5/8" square
Noise Level: MEP-4000 Series: Less than 35 dbA maximum at 1 meter; MEP-7000 Series: Less than 45 dbA maximum at 1 meter
Weight: MEP-4000 Series: 1.1 lb (0.49 Kg); MEP-7x0x: 5 lb (2.27 Kg); MEP-7x5x: 5.4 lb (2.45 Kg)
Approvals: MEP-4000 Series: SASO PCP Registration KSA R-103260; UL File #E145932; FCC Class B, Part 15, Subpart B and complies with Canadian; ICES-003 Class B (MEP-4xx4 models only are Class A)
MEP-7000 Series: UL File #E145832; FCC Class B, Part 15
Warranty: 5 years
product series features
- Proportional models include 'anti-jitter' circuitry
- Switch-selectable feedback on selected models
- Fully adjustable, built-in auxiliary switch on selected models
- Removable terminals and removable 1/2 in NPS conduit fitting (except the MEP-4003)
- Direct mounting to standard shaft sizes
- Gear disengagement button
- Adjustable mechanical end stop
- Valve body quick-mount option on MEP- 4002V/4003V
- A patent-pending noise reducer provides whisper-quiet operation on the MEP-4201, 4501, 4901 series
- Fast rotation-less than 35 seconds for 90 degree with 25 or 45 in-lb. of torque or less than 45 seconds with 90 in-lb. torque on the MEP-4201, 4501, 4901 series
more information & related documents
Series Description
The KMC MEP-4000 Series are compact but powerful direct-coupled actuators which provide tri-state, two-position, or proportional control for small dampers or valves in HVAC systems. A minimum torque of 40 (MEP-40xx) or 80 (MEP-48xx) in-lbs. is available over the 95-degrees angular rotation. A minimum torque of 25 (MEP-4201), 45 (MEP-4501), or 90 (MEP-4901) in-lb. is available over the 95 degree angular rotation in 35 seconds or less (or 45 seconds for the MEP-4901). This series of actuators comes in both non-fail safe and capacitor driven fail-safe models. MEP-4xx1 tri-state/two-position models are designed for use with floating thermostats or controllers. MEP-4xx4/4xx5 two-position models are available in 24 VAC/VDC or 100-degree 240 VAC models. The MEP-7000 Series are powerful, efficient, durable, direct-coupled actuators which also provide tri-state or proportional control for large control air dampers or valves in HVAC systems. A minimum torque of 120, 180, or 320 in-lbs. is available over the 94degrees angular rotation. Capacitor-driven fail-safe models provide efficient operation with switch-selectable fail direction.
Kele Description
ACT/PROP/24VAC/VDC/FSAFE/45 IN-LB
Manufacturer
KMC Controls
