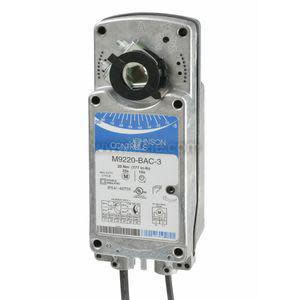

Silver rectangular actuator with shaft coupler and multicolored wires

M9220-HGA-3 | Johnson Controls | Actuators & Dampers

Damper Actuator, Spring-Return 20Nm, Proportional W/ Adj, No Aux Switch, 24VAC 50/60Hz 24VDC

Brand:Johnson Controls

MPN:M9220-HGA-3

SKU:M9220-HGA-3

List Price:

$1,192.00

Today's Price:

$619.84

product datasheet

installation instructions

catalog page

product specifications

Supply Va

15.5 VA

Power Supply

24 V

Torque

177 in-lb

Supply Voltage (Nominal)

24 VAC

Control Signal

Two Position

product series specifications

Input Impedance: 200 kΩ @ 0/2-10 VDC; 500 Ω @ 4-20 mA

Motor: Brushless DC

Wiring: 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable

Conduit Connection: 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)

Action: Select by wiring (2-pos./floating); Switch or hub re-position (proportional)

Rotation: 95° (M9203, M9208); 93° (M9220)

Manual Override: Manual crank (M9220 only)

Noise: < 55 db (M9203); < 52 db (M9208); < 40 db (M9220 2-pos.); < 66 db (M9220 floating/prop.)

Resolution: 120 steps

Life Expectancy: 60,000 cycles, 1.5 million repositions

Operating Temperature: -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)

Operating Humidity: 0 to 95% RH

Enclosure Rating: NEMA 2 (IP54)

Approvals: CE, UL File #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)

Warranty: 5 years

product series features

Reversible mounting design
Electronic stall detection
Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
Minimum 60,000 cycles life expectancy
Models with adjustable control signal (-HGx)

more information & related documents

Series Description

The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional. Kele also offers a variety of accessories to work with the JCI M9200 series actuators.

Kele Description

SPRING RETURN, 177IN-LB 24V, PROP

Manufacturer

Johnson Controls
