M9220-GGC-3 | Johnson Controls | Actuators & Dampers

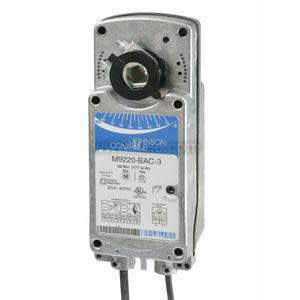

Damper Actuator, Spring-Return 20Nm, Proportional, 2 Aux Switch, 24VAC 50/60Hz 24VDC
Brand:Johnson Controls
MPN:M9220-GGC-3
SKU:M9220-GGC-3
List Price:
$1,255.00
Today's Price:
$652.60
Availability: 1 In Stock
product specifications
Supply Voltage
24 VAC
Torque
177 in-lb
Supply Va
15.5 VA
Control Signal
Proportional, Aux Switch
product series specifications
- Input Impedance:
- 200 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA
- Motor:
- Brushless DC
- Wiring:
- 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable
- Conduit Connection:
- 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)
- Action:
- Select by wiring (2-pos./floating); Switch or hub re-position (proportional)
- Rotation:
- 95° (M9203, M9208); 93° (M9220)
- Manual Override:
- Manual crank (M9220 only)
- Noise:
- <55 db (M9203); <52 db (M9208); <40 db (M9220 2-pos.); <66 db (M9220 floating/prop.)
- Resolution:
- 120 steps
- Life Expectancy:
- 60,000 cycles, 1.5 million repositions
- Operating Temperature:
- -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)
- Operating Humidity:
- 0 to 95% RH
- Enclosure Rating:
- NEMA 2 (IP54)
- Approvals:
- CE, UL FIle #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)
- Warranty:
- 5 years
product series features
- Reversible mounting design
- Electronic stall detection
- Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
- Minimum 60,000 cycles life expectancy
- Models with adjustable control signal (-HGx)
more information & related documents
Series Description
The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional.
Kele Description
ACT/177 IN-LB/20NM/24VAC/24VDC/PROP/SR/2AUX
