M9220-600

M9220-600 | Johnson Controls | Actuators & Dampers

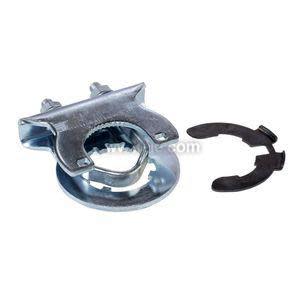

1 Jackshaft Coupler Kit For Mounting M9220-Xxx-3 Proportional Spring-Return Actuators

Brand:Johnson Controls

MPN:M9220-600

SKU:M9220-600

List Price:

$52.52

Today's Price:

$27.31



Availability: 263 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Type

Coupler Kit

product series specifications

    Input Impedance:
  • 200 k‚Ѷ @ 0/2-10 VDC; 500‚Ѷ @ 4-20 mA
    Motor:
  • Brushless DC
    Wiring:
  • 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable
    Conduit Connection:
  • 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)
    Action:
  • Select by wiring (2-pos./floating); Switch or hub re-position (proportional)
    Rotation:
  • 95° (M9203, M9208); 93° (M9220)
    Manual Override:
  • Manual crank (M9220 only)
    Noise:
  • <55 db (M9203); <52 db (M9208); <40 db (M9220 2-pos.); <66 db (M9220 floating/prop.)
    Resolution:
  • 120 steps
    Life Expectancy:
  • 60,000 cycles, 1.5 million repositions
    Operating Temperature:
  • -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)
    Operating Humidity:
  • 0 to 95% RH
    Enclosure Rating:
  • NEMA 2 (IP54)
    Approvals:
  • CE, UL FIle #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)
    Warranty:
  • 5 years

product series features

  • Reversible mounting design
  • Electronic stall detection
  • Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
  • Minimum 60,000 cycles life expectancy
  • Models with adjustable control signal (-HGx)

more information & related documents

Series Description

The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional.

Kele Description

ONE-INCH JACKSHAFT COUPLER FOR M9220 AND M9210

Manufacturer

Johnson Controls

Related Documents

PDF - M9206 Specification SheetM9206 Specification Sheet
PDF - M9206-AGx-2S Installation InstructionsM9206-AGx-2S Installation Instructions
PDF - M9206-Bxx-2S Installation InstructionsM9206-Bxx-2S Installation Instructions
PDF - M9206-Bxx-2S Spec SheetM9206-Bxx-2S Spec Sheet
PDF - M9206-GGx-2S Installation InstructionsM9206-GGx-2S Installation Instructions
PDF - M9208 Installation InstructionsM9208 Installation Instructions
PDF - M9208-Bxx Installation InstructionsM9208-Bxx Installation Instructions
PDF - M9210-Bxx-3 Specification SheetM9210-Bxx-3 Specification Sheet
PDF - M9216 Specification SheetM9216 Specification Sheet
PDF - M9220-Bxx-3 Specification SheetM9220-Bxx-3 Specification Sheet
PDF - Spring Return Actuator Cross ReferenceSpring Return Actuator Cross Reference
