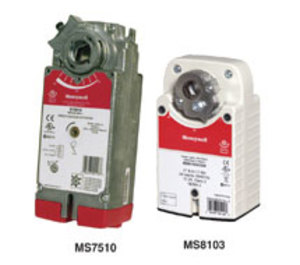

* product series image displayed
MS8120A1007 | Honeywell | Actuators & Dampers
175 IN-LB, SR, 2-POS., 24 VAC
Brand:Honeywell
MPN:MS8120A1007
SKU:MS8120A1007
List Price:
$1,039.00
Today's Price:
$540.28
Availability: 1 In Stock
product specifications
Torque
175 in-lb
Supply Va
40 VA
Control Signal
2 Position, SPST
Supply Voltage (Nominal)
24 VAC
product series specifications
- Input Impedance:
- 100 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA
- Motor:
- :
- 2-position DC with brushes
- :
- Modulating Brushless DC
- Wiring:
- Enclosed terminals
- Action:
- :
- 2-position Mounting orientation direct/reverse acting
- :
- Modulating Switch selectable direct/reverse acting
- Rotation:
- 95° ± 3°
- Drive Time:
- :
- 2-position 45 seconds
- :
- Modulating 90 seconds
- Manual Override:
- Manual crank (88, 175 in-lb only)
- Spring Return Time:
- :
- 27, 44 in-lb 25 seconds
- :
- 88, 175 in-lb 20 seconds
- Resolution:
- 400 Steps
- Noise:
- <50 db @ 3' (1m)
- Life Expectancy:
- 60,000 cycles, 1.5 million repositions
- Operating Temperature:
- :
- MSxx03, xx05 2-pos. -22° to 150‚Ñâ (-30° to 65‚ÑÉ)
- :
- MSxx03, xx05 Mod. -40° to 150‚Ñâ (-40° to 65‚ÑÉ)
- :
- MXxx10, xx20 -40° to 140‚Ñâ (-40° to 60‚ÑÉ)
- Operating Humidity:
- 5 to 95% RH
- Enclosure Rating:
- NEMA 2 (IP54)
- Approvals:
- CE, C-tick, plenum rated, UL File #E4436
- Warranty:
- 5 years
product series features
- Self-centering shaft adapter for steady operation
- Auto adapt on modulating models for stroke precision
- Selector switch for proportional or floating control
- Detachable wiring cover
more information & related documents
Series Description
The Honeywell MS Series high-performance spring return direct coupled actuators are designed and tested to provide reliable spring return control for dampers and valves. The MS Series has an excellent feature set that combines flexibility and simplicity.
Kele Description
175 IN-LB, SR, 2-POS., 24 VAC
Manufacturer
Honeywell
