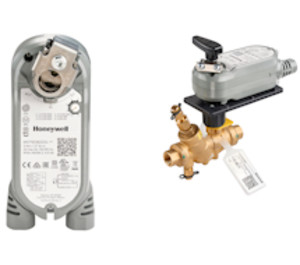

* product series image displayed

MS3103J1024/U | Honeywell | Actuators & Dampers

SYLK BUS 27INLB/NO COND NO AUX

Brand:Honeywell

MPN:MS3103J1024/U

SKU:MS3103J1024/U

List Price:

$816.00

Today's Price:

$424.32

Lead time of 15 days. Chat with Kele experts now

product specifications

Supply Va

4.5 VA

Torque

27 in-lb

Supply Voltage (Nominal)

24 VAC

Control Signal

Communicating

product series specifications

Supply Voltage: 24 VAC ±20% @ 50/60 Hz class 2 transformer, 24 VDC ±20%/-10%

Voltage Output: 2-10 VDC, 0(2)-10 VDC, 10-0(2) VDC

Input Impedance: 95 kOhm minimum

Wiring: 3-foot cable, 18 AWG

Rotation: 95° ± 3°

Operating Temperature: -40°C - 150°C

Operating Humidity: 5 to 95% RH

Enclosure Rating: NEMA 2 (IP54)

Approvals: UL60730, IEC 60730-1 and Part 2-14, UL1097 for Double Insulation, CE Certification Low Voltage Directive 2014/35/EU, CE EMC 2004/108/EC, Switch cables are UL certified only

Weight: 1.7 lbs

product series features

Direct mount to round or square shaft
NEMA 4 models available
Overload protection on all models

more information & related documents

Series Description

The Honeywell Diamond Series direct coupled damper actuators provide damper control for spring return applications and are controlled via modulating or Sylk BUS.

Kele Description

ACT/SR/SYLK BUS 27INLB/NO COND NO AUX

Manufacturer

Honeywell
