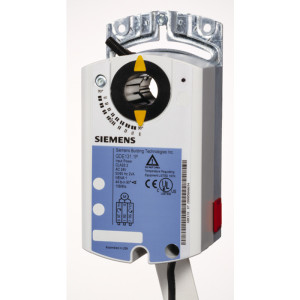

Compact white rectangular actuator with circular mounting hub marked 0 to 90 degrees, yellow position indicators and a blue label.

GDE161.1P/B | Siemens Industry | Actuators & Dampers

OpenAir GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, 0 to 10Vdc control, 90 sec run time, plenum rated, bulk pack 24

Brand:Siemens Industry

MPN:GDE161.1P/B

SKU:GDE161.1P/B

List Price:

$8,144.00

Today's Price:

$4,234.88

product datasheet

installation instructions

Lead time of 14 days. Chat with Kele experts now

product specifications

Supply Va

3.3 VA

Torque

44 in-lb

Supply Voltage (Nominal)

24 VAC

Control Signal

Analog

product series specifications

Torque: 44 lb-in (5 Nm)

Runtime for 90°: 90 seconds at 60 Hz opening and closing 108 seconds at 50 Hz opening and closing

Frequency: 50/60 Hz

Power consumption: 3.3 VA (modulating), 2.3 VA (three-position)

Equipment rating (24 Vac): Class 2 per UL/CSA

Noise level: <35 dBA (running)

Angle of rotation: 90° nominal, 95° maximum

Shaft dimensions: 3/8 to 5/8 in. (8 to 16 mm) dia., 3/4 in. (20 mm) min. length

Operating temperature: -22°F to 130°F (-30°C to 55°C)

Storage temperature: -40°F to 158°F (-40°C to 70°C)

Ambient humidity: 95% RH (non-condensing)

Enclosure: NEMA 2, IP54 per EN60529

Material: Durable plastic

Gear Lubrication: Silicone-free

product series features

Compact, lightweight design
Models available with dual independently adjustable auxiliary switches
Modulating models available with built-in feedback
Floating control models available with feedback potentiometer
Manual override
Mechanical range adjustment capability
Easily visible position indicator
Precabled 18 AWG, 3 ft (0.9 m), or 6 ft (1.8 m) long
Synchronous motor technology
UL873 and cUL (C22.2 No. 24-93) listed
CE certified plenum only
Connection cables for GDExx.1N models sold separately

more information & related documents

Series Description

Siemens offers a full range of non spring return actuators; with torque ratings varying from 44-310in/lbs and covering all the standard control signals.

Kele Description

44 LB-IN, NSR, MODV, 24V, BULK

Manufacturer

Siemens Industry
