KA-301-P

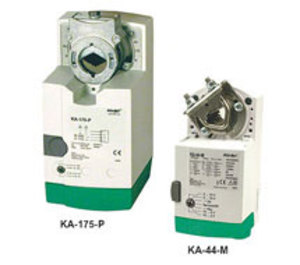

* product series image displayed

KA-301-P | Kele | Actuators & Dampers

ACT-NONSPR, 301 IN-LB, PROPORTIONAL, 24VAC

Brand:Kele

MPN:KA-301-P

SKU:KA-301-P

List Price:

$505.00

Today's Price:

$262.60



Availability: 9 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product series specifications

    Supply Voltage:
  • 21-27 VAC, 50/60 Hz, 24 VDC (VAC only for KA-175-2T, KA-301-2T)
    Motor:
  • Synchronous with magnetic clutch (2-pos, floating), Brushless DC (proportional)
    Wiring:
  • Enclosed terminals
    Action:
  • Switch selectable direct/reverse acting
    Rotation:
  • 95° ± 3°
    Drive Time:
  • 95 seconds @ 60Hz
    Manual Override:
  • Disengage button
    Noise:
    :
  • -44, -88 <35 db @ 3' (1m)
    :
  • -175, -301 <40 db @ 3' (1m)
    Resolution:
  • 150 steps (2-10 VDC), 190 steps (0-10 VDC)
    Life Expectancy:
  • 60,000 cycles, 1.5 million repositions
    Operating Temperature:
  • -5° to 140°F (-20° to 60°C)
    Operating Humidity:
  • 5 to 95% RH
    Approvals:
  • CE, CSA, plenum rated, UL FIle #E4436/E179109
    Warranty:
  • 5 years

product series features

  • Switchable drive direction
  • Service/Off switch (tri-state/two-position models)
  • Auto-adapt switch (proportional models)
  • Manual override
  • Self-centering, reversible hub
  • Adjustable mechanical rotation stops
  • Dual SPDT auxiliary switches available
  • 60,000 cycles nominal

more information & related documents

Series Description

The Kele Revolution™ KA-44, KA-88, KA-175, and KA-301 Series actuators are designed and tested to provide reliable non-spring return damper or valve control. In Building Automation Systems, BAS, and HVAC applications. Each damper actuator or valve actuator is powered by 24 Volt AC and 24 Volt DC and accept tri-state, two-position and proportional control signals.

Kele Description

ACT-NONSPR, 301 IN-LB, PROPORTIONAL, 24VAC

Manufacturer

Kele

Related Documents

PDF - 50001194-001 Installation Instructions50001194-001 Installation Instructions
PDF - KA-175-2T, KA-301-2T Product DatasheetKA-175-2T, KA-301-2T Product Datasheet
PDF - KA-44-2T, KA-88-2T Product DatasheetKA-44-2T, KA-88-2T Product Datasheet
PDF - KA-44-M KA-88-M Data SheetsKA-44-M KA-88-M Data Sheets
PDF - Non-Spring Return Actuator Cross Reference ChartNon-Spring Return Actuator Cross Reference Chart
