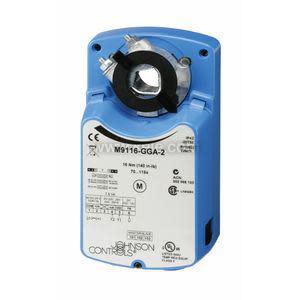

Blue rectangular actuator device with central rotating shaft clamp and printed torque scale

M9116-GGA-2 | Johnson Controls | Actuators & Dampers

Electric Non-Spring Return Actuator, Dc 0-10V, No Aux Switch, 140Lb-In Torque

Brand:Johnson Controls

MPN:M9116-GGA-2

SKU:M9116-GGA-2

List Price:

$1,308.00

Today's Price:

$680.16

product datasheet

product specifications

Supply Va

6.5 VA

Torque

140 in-lb

Supply Voltage (Nominal)

24 VAC

Control Signal

Analog

product series specifications

Supply Voltage: 20-30 VAC, 50/60 Hz

Motor:

M9104, 06 Synchronous with magnetic clutch

M9108, 16, 24 32 Brushless DC

Wiring:

M9104 48" (1.2 m) plenum leads

M9106 0.25" (6 mm) spade terminals

M9108, 16, 24, 32 Screw teminals 22-14 AWG

Action: DA/RA wiring connections (2-pos., floating); Jumper selection (proportional)

Rotation: 90°

Manual Override: Disengage button

Noise:

M9104, 06 < 35 dB @ 3' (1m)

M9108, 16, 24, 32 < 45 dB @ 3' (1m)

Resolution: 100 Steps

Life Expectancy: 100,000 cycles, 2.5 million repositions

Operating Temperature: -4° to 122°F (-20° to 50°C)

Operating Humidity: 0 to 90% RH

Approvals: CE, UL File #E27734, CSA, C-Tick, C-tick, CSA (varies by model)

Warranty: 5 years

product series features

Manual override
Electronic stall detection
Travel indicator

more information & related documents

Series Description

The Johnson Controls M9100 Series non-spring return actuators offer consistent designs and operating features to make installation easy, and they have many built-in features to minimize the need for add-on options. Manufactured in an ISO-9001 facility, these actuators are high quality, reliable, and long lasting.

Kele Description

ACT/140 IN-LB/16NM/24VAC/24VDC/PROP/F/B

Manufacturer

Johnson Controls
