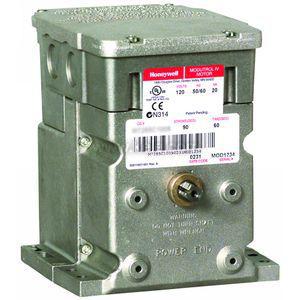

M6184D1035/U | Honeywell | Actuators & Dampers
Actuator Floating 24V 60 Sec. 160 D
Brand:Honeywell
MPN:M6184D1035/U
SKU:M6184D1035
List Price:
$2,094.00
Today's Price:
$1,088.88
Log in for customized pricingproduct specifications
Supply Va
15 VA
Torque
150 in-lb
Supply Voltage (Nominal)
24 VAC
Control Signal
Floating
product series specifications
Dead weight load on shaft:
Power or auxiliary end: 200 lb (90.8 kg) max
Max combined load: 300 lb (136 kg)
Ambient temp: Max: 150°F (66°C) @ 25% duty cycle; Min: -40°F (-40°C)
Crankshaft: 3/8" (0.95 cm) square, dual-ended shaft
Agency approvals: UL listed, CSA, CE Guide #400-E
Warranty: 2 years
Signals: Model-specific Floating, proportional or 2-position
product series features
- Long life
- NEMA 3 housing
- Reduced power consumption
more information & related documents
Series Description
Honeywell Modutrol motors are offered with a number of diffrent control signals for both damper and valve applications.
Kele Description
ACT.FLOATING 24V 60 SEC. 160 D
Manufacturer
Honeywell
HW_M9_Modutrol_Data_Install
