NMB24-SR-T-N4

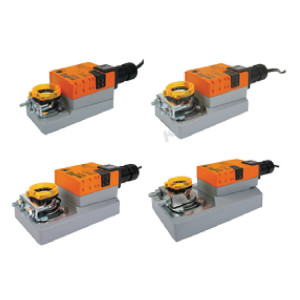

* product series image displayed

NMB24-SR-T-N4 | Belimo | Actuators & Dampers

ACT/NSR/70IN-LB(8NM)/ 24VAC/VDC/2-10VDC/N4

Brand:Belimo

MPN:NMB24-SR-T-N4

SKU:NMB24-SR-T-N4

List Price:

$1,279.00

Today's Price:

$665.08



Availability: Usually Ships in Less Than 15 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Supply Voltage

24 VAC

Torque

70 in-lb

Supply Va

5 VA

Control Signal

2-10 VDC, Terminal Strip, NEMA 4/4X

product series specifications

    Supply Voltage:
  • 24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC
    Motor:
  • Brushless DC
    Wiring:
  • 3' (0.9 m) plenum cable, 18 AWG, terminals
    Action:
  • Non-spring return
    Rotation:
  • 95 degrees, Rev. with switch
    Manual Override:
  • Pushbutton disengage
    Noise:
  • <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)
    Resolution:
  • 100 steps
    Life Expectancy:
  • 100,000 cycles, 1 million repositions
    Operating Temperature:
  • -22° to 122°F (-30° to 50°C)
    Operating Humidity:
  • 5 to 95% RH
    Approvals:
  • , UL94-5VA
    Warranty:
  • 5 years

product series features

  • Manual override for testing and verification
  • Reversing switch for control flexibility
  • CSA and CE approved for worldwide application
  • Plenum-rated housing and cable connections
  • NEMA 4 models available for outdoor locations

more information & related documents

Series Description

The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.

Kele Description

ACT/NSR/70IN-LB(8NM)/ 24VAC/VDC/2-10VDC/N4

Manufacturer

Belimo
