AHQB24-1-100 | Belimo | Actuators & Dampers

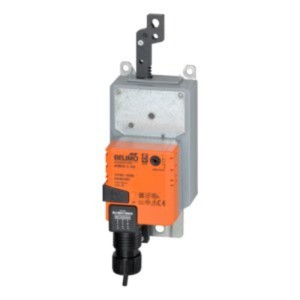

Damper Actuator, 44 lbf, Non-Spring Return, 24V, On/Off

Brand:Belimo

MPN:AHQB24-1-100

SKU:AHQB24-1-100

List Price:

$994.00

Today's Price:

$516.88



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Actuator Series

AHQB(X)

Agency Listings

cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC

Ambient Temperature Range

-22 to 122 °F (-30 to 50 °C)

Application Type

Air

Housing

NEMA 2, IP54, UL Enclosure Type 2

Humidity

5 to 95% RH non condensing (EN 60730-1)

Input Impedance

1000 Ω

Manual Override

External Push Button

Power Consumption Holding

1.5 W

Power Consumption Running

13 W

Power Supply

24 VAC ± 20%, 50/60 Hz, 24 VDC ± 20%

Power Supply Type

24V

Quality Standard

ISO 9001

Running Time

Quick (2.5 to 20 seconds)

Servicing

maintenance free

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)

Supply Voltage

24 VAC

Torque

44 lbf

Transformer Sizing

23 VA (class 2 power source) (I max 20A@5ms)

Unit of Measure

PC

Supply Va

23 VA

Control Signal

On/Off

product series specifications

    Supply Voltage:
  • 24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC
    Motor:
  • Brushless DC
    Wiring:
  • 3' (0.9 m) plenum cable, 18 AWG, terminals
    Action:
  • Non-spring return
    Rotation:
  • 95 degrees, Rev. with switch
    Manual Override:
  • Pushbutton disengage
    Noise:
  • <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)
    Resolution:
  • 100 steps
    Life Expectancy:
  • 100,000 cycles, 1 million repositions
    Operating Temperature:
  • -22° to 122°F (-30° to 50°C)
    Operating Humidity:
  • 5 to 95% RH
    Approvals:
  • , UL94-5VA
    Warranty:
  • 5 years

product series features

  • Manual override for testing and verification
  • Reversing switch for control flexibility
  • CSA and CE approved for worldwide application
  • Plenum-rated housing and cable connections
  • NEMA 4 models available for outdoor locations

more information & related documents

Series Description

The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.
