MS8104F1010

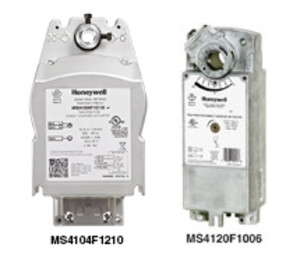

* product series image displayed

MS8104F1010 | Honeywell | Actuators & Dampers

FIRE/SMK ACT/30 IN-LB/24V/SR

Brand:Honeywell

MPN:MS8104F1010

SKU:MS8104F1010

List Price:

$748.00

Today's Price:

$388.96



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

24 VAC

Torque

30 in-lb

Supply Va

16 VA

Control Signal

2 Position

product series specifications

    Motor:
  • DC with brushes
    Wiring:
    :
  • MS4xxx 32" leads, 18 AWG and 7/8" knockout holes for conduit fittings
    :
  • MS8xxx 39" leads, 18 AWG and 7/8" knockout holes for conduit fittings
    :
    Action:
  • CW/CCW mounting method
    Rotation:
  • 95° ±3°, mechanically limited
    Auxilliary Switch:
    :
  • -F120X 2 SPST, 5A res., 3A ind. @ 250VAC
    :
  • -F10XX None
    Noise:
    :
  • Driving Open 80 dBA @ 3' (1.0 m)
    :
  • Holding 20 dBA @ 3' (1.0 m) no audible noise
    Life Expectancy:
  • 30,000 cycles
    Operating Temperature:
  • 0° to 130‚Ñâ (-18° to 55‚ÑÉ)
    Operating Humidity:
  • 5 to 95% RH, non-condensing
    Approvals:
  • CE, C-TICK, cULus,UL873, NEMA1
    Warranty:
  • 5 years

product series features

  • Designed to meet UL-555 and UL-555S requirements
  • Robust die-cast aluminum housing for protection and long service life
  • Maximum spring return timing of 15-20 seconds
  • Reliably built by the industry leader
  • Energy-saving patented design
  • No audible noise during holding

more information & related documents

Series Description

Honeywell fire and smoke damper actuators are designed to meet both UL-555 and UL-555S 350 degrees F safety requirements for combined fire and smoke applications. The fast-acting actuators close dampers in 15-20 seconds, and the integral spring return ensures the consistent, proper level of torque.

Kele Description

FIRE/SMK ACT/30 IN-LB/24V/SR

Manufacturer

Honeywell
