FSTF120-S

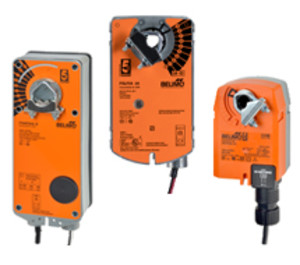

* product series image displayed

FSTF120-S | Belimo | Actuators & Dampers

ACT/FIRE/SMOKE/18 IN-LB/120V/ON/OFF/ 2SPST/1MCAB

Brand:Belimo

MPN:FSTF120-S

SKU:FSTF120-S

List Price:

$516.00

Today's Price:

$268.32



Availability: Usually Ships in Less Than 8 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

120 VAC

Torque

18 in-lb

Supply Va

5 VA

Control Signal

On/Off, Aux Switch

product series specifications

    Wiring:
  • 3-foot leads, 18 AWG, 1/2" NPT conduit connection
    Feedback:
  • 2-10 VDC (FSAF24-SR/FSAFB24-SR only)
    Rotation Direction:
  • CW/CCW mounting method
    Rotation Angle:
  • 95°
    Override:
  • 3 mm hex crank (FSAF only)
    Shaft Diameter:
    FSTF:
  • 1/4‚Ä= to 1/2‚Ä=, centers on 1/2‚Ä=
    FSLF, FSNF, FSAF:
  • 3/8‚Ä= to 1.05‚Ä=
    FSAFxA, FSAFB:
  • 1/2" to 1.05" round, centers on 3/4" with insert, 1" without
    Noise:
  • <45 dB(A) drive, <62 dB (A) return
    Life Expectancy:
  • 20,000 cycles per UL555S
    Auxilliary Switch:
  • 2-SPDT, 7A resistive, 125/250 VAC
    Housing Material:
  • Zinc-coated metal (except FSTF), UL94-5VA (FSTF)
    Operating Temperature:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ) (except FSAF), -22° TO 122‚Ñâ (-30° TO 50‚ÑÉ) (FSAF)
    Operating Humidity:
  • 5 to 95% RH
    Enclosure Rating:
    FSTF:
  • NEMA 2, IP42, UL enclosure type 2
    FSLF, FSNF, :
    FSAF24/120, :
    FSAFxA, FSAFB:
  • NEMA 1 (IP40)
    FSAF230/24-BAL:
  • NEMA type 1/IP40 (with flex conduit)
    FSAF24-SR:
  • NEMA type 2/IP40
    Approvals:
  • cULus, CAN/CSA, UL555
    :
  • FSLF UL60730-1A/-2-1
    :
  • FSNF UL873, California Listed, NYC
    :
  • FSAF UL873
    Housing:
  • NEMA-1, IP40
    Warranty:
  • 5 years

product series features

  • ISO 9001 Certified Quality Control and a 5-year warranty assure reliable operation
  • 24, 120 and 230 VAC to meet various installation requirements
  • 24 VDC model (FSAF only) with 2-position and proportional control for DC power applications
  • Unique FSAF24-BAL actuator allows duct balancing capabilities in fire and smoke dampers
  • UL555 and UL555S listed with U.S. damper manufacturers

more information & related documents

Series Description

Belimo's broad product line of fire and smoke damper actuators covers the established range of system applications including active smoke control for stairwell, under-floor and other pressurization applications.

Kele Description

ACT/FIRE/SMOKE/18 IN-LB/120V/ON/OFF/ 2SPST/1MCAB

Manufacturer

Belimo
