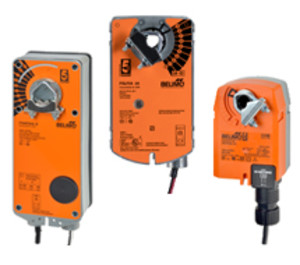

* product series image displayed
FSTF120 | Belimo | Actuators & Dampers
ACT/FIRE/SMOKE/18 IN-LB/120V/ON/OFF/1MCAB
Brand:Belimo
MPN:FSTF120
SKU:FSTF120
2 in stock
product specifications
Torque
18 in-lb
Supply Va
5 VA
Control Signal
Two Position
Supply Voltage (Nominal)
120 VAC
product series specifications
- Wiring:
- 3-foot leads, 18 AWG, 1/2" NPT conduit connection
- Feedback:
- 2-10 VDC (FSAF24-SR/FSAFB24-SR only)
- Rotation Direction:
- CW/CCW mounting method
- Rotation Angle:
- 95°
- Override:
- 3 mm hex crank (FSAF only)
- Shaft Diameter:
- FSTF:
- 1/4‚Ä= to 1/2‚Ä=, centers on 1/2‚Ä=
- FSLF, FSNF, FSAF:
- 3/8‚Ä= to 1.05‚Ä=
- FSAFxA, FSAFB:
- 1/2" to 1.05" round, centers on 3/4" with insert, 1" without
- Noise:
- <45 dB(A) drive, <62 dB (A) return
- Life Expectancy:
- 20,000 cycles per UL555S
- Auxilliary Switch:
- 2-SPDT, 7A resistive, 125/250 VAC
- Housing Material:
- Zinc-coated metal (except FSTF), UL94-5VA (FSTF)
- Operating Temperature:
- 32° to 122‚Ñâ (0° to 50‚ÑÉ) (except FSAF), -22° TO 122‚Ñâ (-30° TO 50‚ÑÉ) (FSAF)
- Operating Humidity:
- 5 to 95% RH
- Enclosure Rating:
- FSTF:
- NEMA 2, IP42, UL enclosure type 2
- FSLF, FSNF, :
- FSAF24/120, :
- FSAFxA, FSAFB:
- NEMA 1 (IP40)
- FSAF230/24-BAL:
- NEMA type 1/IP40 (with flex conduit)
- FSAF24-SR:
- NEMA type 2/IP40
- Approvals:
- cULus, CAN/CSA, UL555
- :
- FSLF UL60730-1A/-2-1
- :
- FSNF UL873, California Listed, NYC
- :
- FSAF UL873
- Housing:
- NEMA-1, IP40
- Warranty:
- 5 years
product series features
- ISO 9001 Certified Quality Control and a 5-year warranty assure reliable operation
- 24, 120 and 230 VAC to meet various installation requirements
- 24 VDC model (FSAF only) with 2-position and proportional control for DC power applications
- Unique FSAF24-BAL actuator allows duct balancing capabilities in fire and smoke dampers
- UL555 and UL555S listed with U.S. damper manufacturers
more information & related documents
Series Description
Belimo's broad product line of fire and smoke damper actuators covers the established range of system applications including active smoke control for stairwell, under-floor and other pressurization applications.
Kele Description
ACT/FIRE/SMOKE/18 IN-LB/120V/ON/OFF/1MCAB
Manufacturer
Belimo
