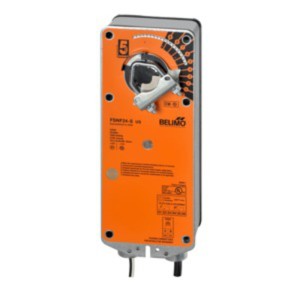

Fire & Smoke Actuator, 70 in-lb, Spring Return, 24V, On/Off, 1m Cable

Brand:Belimo

MPN:FSNF24 US

SKU:FSNF24

List Price:

$812.00

Today's Price:

$422.24



Availability: 3 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Actuator Series

FSNF

Agency Listings

cULus listed to UL873 and CAN/CSA C22.2 No.24, UL 2043 Listed for air plenum installation per NEC 300.22 and IMC Section 602<br/>NYC Department of Buildings MEA 197-07-M.California State Fire Marshal Listing 3210-1593:101.

Ambient Temperature Range

32 to 122 °F (0 to 50 °C)

Angle of Rotation

95°

Application Type

Fire & Smoke

Electrical Connection

3 ft 1 m, 18 GA, 2 color coded leads

Housing

NEMA 1, IP40

Housing Material

Zinc Coated Steel

Humidity

5 to 95% RH non-condensing

Manual Override

No Manual Override

Position Indication

visual indicator, 0° to 95° (0° is full spring return position)

Power Consumption Holding

6.5 VA, End stop 67 VA, 2.5 A slow blow fuse *

Power Consumption Running

50/60 Hz, 24 VA

Power Supply

24 VAC ± 20%, 50/60 Hz

Power Supply Type

24V

Quality Standard

ISO 9001

Running Time

15 seconds

Servicing

maintenance free

Shaft Diameter

1/2 in to 1.05 in round, centers on 1/2 in and 3/4 in with insert, 1.05 in without insert

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)

Supply Voltage

24 VAC

Torque

70 in-lb

Transformer Sizing

40VA (class 2 power source)

Unit of Measure

PC

Supply Va

24 VA

Control Signal

On/Off

product series specifications

    Wiring:
  • 3-foot leads, 18 AWG, 1/2" NPT conduit connection
    Feedback:
  • 2-10 VDC (FSAF24-SR/FSAFB24-SR only)
    Rotation Direction:
  • CW/CCW mounting method
    Rotation Angle:
  • 95°
    Override:
  • 3 mm hex crank (FSAF only)
    Shaft Diameter:
    FSTF:
  • 1/4‚Ä= to 1/2‚Ä=, centers on 1/2‚Ä=
    FSLF, FSNF, FSAF:
  • 3/8‚Ä= to 1.05‚Ä=
    FSAFxA, FSAFB:
  • 1/2" to 1.05" round, centers on 3/4" with insert, 1" without
    Noise:
  • <45 dB(A) drive, <62 dB (A) return
    Life Expectancy:
  • 20,000 cycles per UL555S
    Auxilliary Switch:
  • 2-SPDT, 7A resistive, 125/250 VAC
    Housing Material:
  • Zinc-coated metal (except FSTF), UL94-5VA (FSTF)
    Operating Temperature:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ) (except FSAF), -22° TO 122‚Ñâ (-30° TO 50‚ÑÉ) (FSAF)
    Operating Humidity:
  • 5 to 95% RH
    Enclosure Rating:
    FSTF:
  • NEMA 2, IP42, UL enclosure type 2
    FSLF, FSNF, :
    FSAF24/120, :
    FSAFxA, FSAFB:
  • NEMA 1 (IP40)
    FSAF230/24-BAL:
  • NEMA type 1/IP40 (with flex conduit)
    FSAF24-SR:
  • NEMA type 2/IP40
    Approvals:
  • cULus, CAN/CSA, UL555
    :
  • FSLF UL60730-1A/-2-1
    :
  • FSNF UL873, California Listed, NYC
    :
  • FSAF UL873
    Housing:
  • NEMA-1, IP40
    Warranty:
  • 5 years
