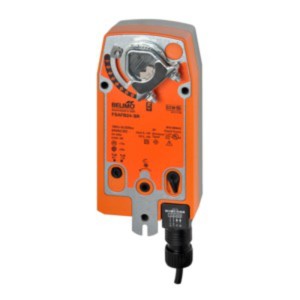

Fire & Smoke Actuator, 180 in-lb, Spring Return, 24 VAC/DC, Modulating, 1m Cable

Brand:Belimo

MPN:FSAFB24-SR

SKU:FSAFB24-SR

List Price:

$1,212.00

Today's Price:

$630.24



8 in stock

product specifications

Enclosure Rating

NEMA 2, IP54

Actuator Series

FSAF

Agency Listings

cULus listed to UL60730-1A:02; UL 60730-2-14:02 and CAN/CSA-E60730-1:02; Listed to UL 2043 - suitable for use in air plenums per Section 300.22(c) of the NEC and Section 602.2 of the IMC

Ambient Temperature Range

-22 to 122 °F (-30 to 50 °C)

Angle of Rotation

95°

Application Type

Fire & Smoke

Electrical Connection

3 ft 1 m, 18 GA appliance cable with 1/2 in conduit connector

Feedback Output U

2 to 10 VDC, 0.5 mA max

Housing Material

Zinc Coated Metal and Plastic Casing

Humidity

5 to 95% RH non-condensing

Input Impedance

100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA

Manual Override

5mm Hex Crank (3/16 in Allen), Supplied

Position Indication

visual indicator, 0° to 95° (0° is full spring return position)

Power Consumption Holding

3 W, 5 VA

Power Consumption Running

6 W, 8.5 VA

Power Supply

24 VAC, 24 VDC

Power Supply Type

24V

Quality Standard

ISO 9001

Running Time

<75 seconds

Servicing

maintenance free

Shaft Diameter

1/2 in to 1.05 in round, centers on 1/2 in and 3/4 in with insert, 1.05 in without insert

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)

Torque

180 in-lb

Transformer Sizing

10 VA (class 2 power source 24 VAC only)

Unit of Measure

PC

Supply Va

10 VA

Control Signal

Analog

Supply Voltage (Nominal)

24 VAC

product series specifications

Wiring: 3-foot leads, 18 AWG, 1/2" NPT conduit connection

Feedback: 2-10 VDC (FSAF24-SR/FSAFB24-SR only)

Rotation Direction: CW/CCW mounting method

Rotation Angle: 95°

Override: 3 mm hex crank (FSAF only)

Shaft Diameter:

FSTF: 1/4” to 1/2”, centers on 1/2”

FSLF, FSNF, FSAF: 3/8” to 1.05”

FSAFxA, FSAFB: 1/2” to 1.05” round, centers on 3/4” with insert, 1” without

Noise: < 45 dB(A) drive, < 62 dB (A) return

Life Expectancy: 20,000 cycles per UL555S

Auxiliary Switch: 2-SPDT, 7A resistive, 125/250 VAC

Housing Material: Zinc-coated metal (except FSTF), UL94-5VA (FSTF)

Operating Temperature: 32° to 122°F (0° to 50°C) (except FSAF), -22° TO 122°F (-30° TO 50°C) (FSAF)

Operating Humidity: 5 to 95% RH

Enclosure Rating:

FSTF: NEMA 2, IP42, UL enclosure type 2

FSLF, FSNF, FSAF24/120, FSAFxA, FSAFB: NEMA 1 (IP40)

FSAF230/24-BAL: NEMA type 1/IP40 (with flex conduit)

FSAF24-SR: NEMA type 2/IP40

Approvals: cULus, CAN/CSA, UL555; FSLF UL60730-1A/-2-1; FSNF UL873, California Listed, NYC; FSAF UL873

Housing: NEMA-1, IP40

Warranty: 5 years

product series features

  • ISO 9001 Certified Quality Control and a 5-year warranty assure reliable operation
  • 24, 120 and 230 VAC to meet various installation requirements
  • 24 VDC model (FSAF only) with 2-position and proportional control for DC power applications
  • Unique FSAF24-BAL actuator allows duct balancing capabilities in fire and smoke dampers
  • UL555 and UL555S listed with U.S. damper manufacturers

more information & related documents

Series Description

Belimo's broad product line of fire and smoke damper actuators covers the established range of system applications including active smoke control for stairwell, under-floor and other pressurization applications.

Kele Description

ACT/FIRE/SMOKE/ 24VAC/DC/180INLB /2-10V/1MCAB
