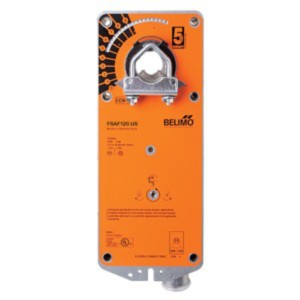

Fire & Smoke Actuator, 180 in-lb, Spring Return, 120V, On/Off

Brand:Belimo

MPN:FSAF120A

SKU:FSAF120A

List Price:

$1,090.00

Today's Price:

$566.80



Availability: Usually Ships in Less Than 10 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Actuator Series

FSAF

Agency Listings

cULus listed to UL60730-1A:02; UL 60730-2-14:02 and CAN/CSA-E60730-1:02; Listed to UL 2043 - suitable for use in air plenums per Section 300.22(c) of the NEC and Section 602.2 of the IMC

Ambient Temperature Range

32 to 122 °F (0 to 50 °C)

Angle of Rotation

95°

Application Type

Fire & Smoke

Electrical Connection

3 ft 1 m, 18 GA appliance cable with 1/2 in conduit connector

Housing

NEMA 1, IP40

Housing Material

Zinc Coated Steel

Humidity

5 to 95% RH non condensing (EN 60730-1)

Manual Override

No Manual Override

Position Indication

visual indicator, 0° to 95° (0° is full spring return position)

Power Consumption Holding

10 W, 24 VA, End stop 54 VA, 0.5 A slow blow fuse *

Power Consumption Running

28 W, 38 VA

Power Supply

120 VAC ± 10%, 50/60 Hz

Power Supply Type

120V

Quality Standard

ISO 9001, RoHS (EU-Directive 2011/65/EU)

Running Time

25 seconds

Servicing

maintenance free

Shaft Diameter

1/2 in to 1.05 in round, centers on 3/4 in with insert, 1.05 in without insert

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)

Supply Voltage

120 VAC

Torque

180 in-lb

Unit of Measure

PC

Supply Va

30 VA

Control Signal

On/Off

product series specifications

    Wiring:
  • 3-foot leads, 18 AWG, 1/2" NPT conduit connection
    Feedback:
  • 2-10 VDC (FSAF24-SR/FSAFB24-SR only)
    Rotation Direction:
  • CW/CCW mounting method
    Rotation Angle:
  • 95°
    Override:
  • 3 mm hex crank (FSAF only)
    Shaft Diameter:
    FSTF:
  • 1/4‚Ä= to 1/2‚Ä=, centers on 1/2‚Ä=
    FSLF, FSNF, FSAF:
  • 3/8‚Ä= to 1.05‚Ä=
    FSAFxA, FSAFB:
  • 1/2" to 1.05" round, centers on 3/4" with insert, 1" without
    Noise:
  • <45 dB(A) drive, <62 dB (A) return
    Life Expectancy:
  • 20,000 cycles per UL555S
    Auxilliary Switch:
  • 2-SPDT, 7A resistive, 125/250 VAC
    Housing Material:
  • Zinc-coated metal (except FSTF), UL94-5VA (FSTF)
    Operating Temperature:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ) (except FSAF), -22° TO 122‚Ñâ (-30° TO 50‚ÑÉ) (FSAF)
    Operating Humidity:
  • 5 to 95% RH
    Enclosure Rating:
    FSTF:
  • NEMA 2, IP42, UL enclosure type 2
    FSLF, FSNF, :
    FSAF24/120, :
    FSAFxA, FSAFB:
  • NEMA 1 (IP40)
    FSAF230/24-BAL:
  • NEMA type 1/IP40 (with flex conduit)
    FSAF24-SR:
  • NEMA type 2/IP40
    Approvals:
  • cULus, CAN/CSA, UL555
    :
  • FSLF UL60730-1A/-2-1
    :
  • FSNF UL873, California Listed, NYC
    :
  • FSAF UL873
    Housing:
  • NEMA-1, IP40
    Warranty:
  • 5 years

product series features

  • ISO 9001 Certified Quality Control and a 5-year warranty assure reliable operation
  • 24, 120 and 230 VAC to meet various installation requirements
  • 24 VDC model (FSAF only) with 2-position and proportional control for DC power applications
  • Unique FSAF24-BAL actuator allows duct balancing capabilities in fire and smoke dampers
  • UL555 and UL555S listed with U.S. damper manufacturers

more information & related documents

Series Description

Belimo's broad product line of fire and smoke damper actuators covers the established range of system applications including active smoke control for stairwell, under-floor and other pressurization applications.

Kele Description

ACT/FIRE/SMOKE/180 IN-LB/120V/ON/OFF
