NKQX24-SR | Belimo | Actuators & Dampers

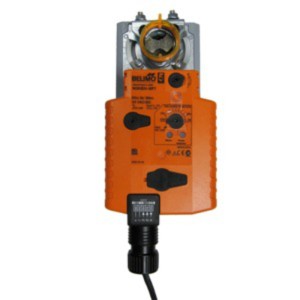

Damper Actuator, 54 in-lb, Electronic Fail-Safe, 24V, Modulating
Brand:Belimo
MPN:NKQX24-SR
SKU:NKQX24-SR
product specifications
Actuator Series
NKQB(X)
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Angle of Rotation
95°
Application Type
Air
Electrical Connection
3ft 1m, 10ft 3m or 16ft 5m 18 GA appliance or plenum cables, with or without 1/2 in conduit connector
Feedback Output U
2 to 10 VDC, 0.5 mA max
Housing
NEMA 2, IP54, UL Enclosure Type 2
Humidity
max. 95% RH non-condensing
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA
Manual Override
External Push Button
Position Indication
reflective visual indicator (snap on)
Power Consumption Holding
3 W
Power Consumption Running
11 W
Power Supply
24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Supply Type
24V
Quality Standard
ISO 9001
Running Time
Quick (2.5 to 20 seconds)
Servicing
maintenance free
Shaft Diameter
1/2 in to 1.05 in round, centers on 1/2 in and 3/4 in with insert, 1.05 in without insert
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Torque
54 in-lb
Transformer Sizing
22 VA (class 2 power source)
Unit of Measure
PC
Weight
5.2
Supply Va
22 VA
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
- Supply Voltage:
- 24 VAC ±20% @ 11 VA, 50/60 Hz; 24 VDC ±10% @ 458 mA
- Control Signal:
- On-Off, Proportional
- Input Impedance:
- 100 kΩ
- Motor:
- Brushless DC
- Conduit Connection:
- 3 ft (0.91 m), 18GA appliance cable, 1/2" (1.27 cm) conduit connection
- Switch Type:
- Add-on SPDT
- Shaft:
- Direct mount
- Actuator Bracket:
- Universal clamp
- Operating Torque:
- 54 in-lb
- Frame:
- Plastic / aluminum
- Linkage:
- Damper acessories
- Torque:
- 54 in-lb
- Action:
- Shaft rotation
- Rotation:
- 95 degrees
- Drive Time:
- 4 seconds
- Spring Return Time:
- < 4 seconds
- Noise:
- ≤ 56.5 dB (A)
- Resolution:
- ± 5%
- Life Expectancy:
- 100,000+ cycles
- Operating Temperature:
- -22 to 122‚Ñâ (-30 to 50‚ÑÉ)
- Operating Humidity:
- 5-95% RH non-condensing
- Maximum Shaft Diameter:
- 1.05‚Ä= (2.67 cm)
- Minimum Shaft Length:
- 0.5‚Ä= to 1.05‚Ä= (1.27 to 2.67 cm)
- Mounting:
- Direct
- Available Options:
- 18 or 16 ft cable (5.49 or 4.88 m), 16 or 10 ft cable (4.88 or 3.05 m)
- Enclosure Rating:
- NEMA2 / IP54 UL enclosure type 2
- Dimensions:
- 7.25‚Ä=W x 3.9‚Ä=H x 3.0‚Ä=L (18.42 x 9.91 x 7.62 cm)
- Approvals:
- CSA, CE
- Warranty:
- 5 years
product series features
- Standard 4 second drive time
- Standard 1/2 in to 1.05 in clamp
- 3 ft plenum rated cable with conduit connnector
- 24VAC/DC power supply
- Direct coupled
- 5 year warranty
more information & related documents
Series Description
The Belimo NKQ Series actuators are electronic, fail safe, fast acting actuators. They are designed to deliver a 4 to 10 second (4 second is standard) fail safe return. They are not spring return, but rather they are driven by a super capacitor which allows a very fast return to the normal or fail safe position desired. The basic models come in both ON/OFF and 2-10VDC options. Auxillary switches and feedback options are available on the NKQB24-1 model. The NKQB24-SR comes with a feedback of 2-10 VDC standard and the auxillary switch is an optional add-on. For more customized control, the NKQx-MFT models can be custom ordered based on the options available.
Kele Description
ACT/FAILSAFE/54IN-LB (6NM)/ 24VAC/DC/2-10VDC/4SEC
Manufacturer
Belimo
Related Documents
NKQ Series Datasheet
