![GKX24-3-T-N4](https://assets.kele.com/assets/product/8abf8e0046249bb9044b8c34ea18a1405af8c56a/gkx24-3-t-n4.jpg)

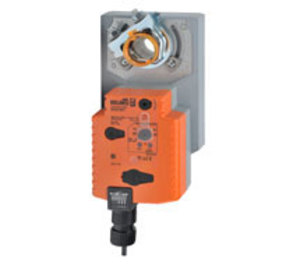

GKX24-3-T-N4 | Belimo | Actuators & Dampers
ACT/FAILSAFE/360IN-LB (40NM)/ 24VAC/DC/ON/OFF/FLTGPT
Brand:Belimo
MPN:GKX24-3-T-N4
SKU:GKX24-3-T-N4
product specifications
Torque
360 in-lb
Weight
5.2
Supply Va
21 VA
Control Signal
Two Position, Floating
Supply Voltage (Nominal)
24 VAC
product series specifications
- Supply Voltage:
- 24 VAC ±20% 50/60 Hz
- Control Signal:
- Two-position, floating, Proportional 2-10 VDC, 4-20 mA
- Operating Humidity:
- 5 to 95% RH
- Approvals:
- UL, CE, cUL
- Warranty:
- 5 years
product series features
- Fail-safe operation upon power loss for positive damper or valve positioning
- 360 in-lb is more power than spring return models
- LED Status Indication
- Visible position indicator
more information & related documents
Series Description
The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.
Kele Description
ACT/FAILSAFE/360IN-LB (40NM)/ 24VAC/DC/ON/OFF/FLTGPT
Manufacturer
Belimo
