GKX24-3

GKX24-3 | Belimo | Actuators & Dampers

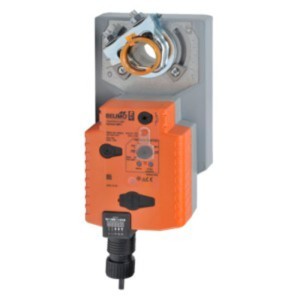

Damper Actuator, 360 in-lb, Electronic Fail-Safe, 24V, On/Off/Floating Point

Brand:Belimo

MPN:GKX24-3

SKU:GKX24-3

List Price:

$1,532.00

Today's Price:

$796.64



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Actuator Series

GKB(X)

Agency Listings

cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC

Ambient Temperature Range

-22 to 122 °F (-30 to 50 °C)

Angle of Rotation

95°

Application Type

Air

Electrical Connection

3ft 1m, 10ft 3m or 16ft 5m 18 GA appliance or plenum cables, with or without 1/2 in conduit connector

Housing

NEMA 2, IP54, UL Enclosure Type 2

Humidity

max. 95% RH non-condensing

Input Impedance

100 k Ω

Manual Override

External Push Button

Position Indication

reflective visual indicator (snap on)

Power Consumption Holding

3 W

Power Consumption Running

11 W

Power Supply

24 VAC ± 20%, 50/60 Hz

Power Supply Type

24V

Quality Standard

ISO 9001

Running Time

150 seconds

Servicing

maintenance free

Shaft Diameter

1/2 in to 1.05 in round, centers on 3/4 in with insert, 1.05 in without insert

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)

Supply Voltage

24 VAC

Torque

360 in-lb

Transformer Sizing

21 VA (class 2 power source)

Unit of Measure

PC

Supply Va

21 VA

Control Signal

On/Off, Floating

product series specifications

    Supply Voltage:
  • 24 VAC ±20% 50/60 Hz
    Control Signal:
  • Two-position, floating, Proportional 2-10 VDC, 4-20 mA
    Operating Humidity:
  • 5 to 95% RH
    Approvals:
  • UL, CE, cUL
    Warranty:
  • 5 years

product series features

  • Fail-safe operation upon power loss for positive damper or valve positioning
  • 360 in-lb is more power than spring return models
  • LED Status Indication
  • Visible position indicator

more information & related documents

Series Description

The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.

Kele Description

ACT/FAILSAFE/360IN-LB (40NM)/ 24VAC/ON/OFF/FLTGPT

Manufacturer

Belimo
