GKB24-3 | Belimo | Actuators & Dampers

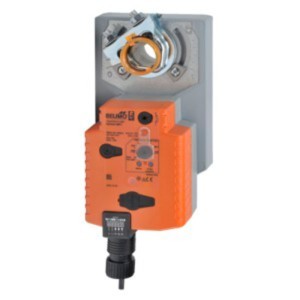

Damper Actuator, 360 in-lb, Electronic Fail-Safe, 24V, On/Off/Floating Point

Brand:Belimo

MPN:GKB24-3

SKU:GKB24-3

List Price:

$1,551.00

Today's Price:

$806.52

product datasheet

installation instructions

catalog page

How To: Install S1A and S2A Auxiliary Switches on Actuators

Lead time of 9 days. Chat with Kele experts now

product specifications

Enclosure Rating

NEMA 2, IP54

Actuator Series

GKB(X)

Agency Listings

cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC

Ambient Temperature Range

-22 to 122 °F (-30 to 50 °C)

Angle of Rotation

95°

Application Type

Air

Electrical Connection

3ft 1m, 18 GA plenum cable with 1/2 in conduit connector

Humidity

max. 95% RH non-condensing

Input Impedance

100 k Ω

Manual Override

External Push Button

Position Indication

reflective visual indicator (snap on)

Power Consumption Holding

3 W

Power Consumption Running

11 W

Power Supply

24 VAC

Power Supply Type

24V

Quality Standard

ISO 9001

Running Time

150 seconds

Servicing

maintenance free

Shaft Diameter

1/2 in to 1.05 in round, centers on 3/4 in with insert, 1.05 in without insert

Storage Temperature Range

-40 to 176 °F (-40 to 80 °C)

Torque

360 in-lb

Transformer Sizing

21 VA (class 2 power source)

Unit of Measure

Supply Va

21 VA

Control Signal

Two Position, Floating

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 24 VAC ±20% 50/60 Hz

Control Signal: Two-position, floating, Proportional 2-10 VDC, 4-20 mA

Operating Humidity: 5 to 95% RH

Approvals: UL, CE, cUL

Warranty: 5 years

product series features

Fail-safe operation upon power loss for positive damper or valve positioning
360 in-lb is more power than spring return models
LED Status Indication
Visible position indicator

more information & related documents

Series Description

The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.

Kele Description

ACT/FAILSAFE/360IN-LB (40NM)/ 24VAC/ON/OFF/FLTGPT

Manufacturer

Belimo
