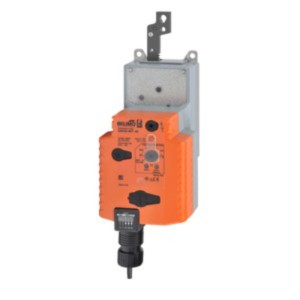

Damper Actuator, 101 lbf, Electronic Fail-Safe, 24V, MFT
Brand:Belimo
MPN:AHKX24-MFT-100
SKU:AHKX24-MFT-100
product specifications
Actuator Series
AHKX
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Application Type
Air
Electrical Connection
3 ft 1m, 10 ft 3m or 16 ft 5m 18 GA appliance or plenum cables, with or without 1/2 in conduit connector
Feedback Output U
2 to 10 VDC, 0.5 mA max, VDC variable
Housing
NEMA 2, IP54, UL Enclosure Type 2
Humidity
max. 95% RH non-condensing
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA, 1500 Ω for PWM, floating point and On/Off
Manual Override
External Push Button
Power Consumption Holding
3 W
Power Consumption Running
11 W
Power Supply
24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Supply Type
24V
Quality Standard
ISO 9001
Running Time
MFT (20 to 300 seconds)
Servicing
maintenance free
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Torque
101 lbf
Transformer Sizing
22 VA (class 2 power source)
Unit of Measure
PC
Supply Va
22 VA
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
- Supply Voltage:
- 24 VAC ±20% 50/60 Hz
- Control Signal:
- Two-position, floating, Proportional 2-10 VDC, 4-20 mA
- Operating Humidity:
- 5 to 95% RH
- Approvals:
- UL, CE, cUL
- Warranty:
- 5 years
product series features
- Fail-safe operation upon power loss for positive damper or valve positioning
- 360 in-lb is more power than spring return models
- LED Status Indication
- Visible position indicator
more information & related documents
Series Description
The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.
Kele Description
ACT/SR/101LBF(450NF)/ 24VAC/VDC/MFT/2-10VDC
Manufacturer
Belimo
Related Documents
GKB24-3 Technical Data
