CDRS25GN1X10

CDRS25GN1X10 | Ruskin Manufacturing | Actuators & Dampers

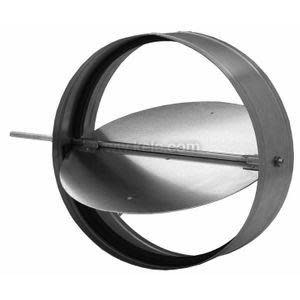

The CDRS25 Commercial Control Butterfly Damper Installs Easily In Round Spiral Ductwork. Galv. Round, Dual Skin Blade, Class II Leakage, Heavy Duty, 4000 Fpm, 10 W.C. Max. 10 Round Damper Neoprene Seals

Brand:Ruskin Manufacturing

MPN:CDRS25GN1X10

SKU:CDRS25GN1X10

List Price:

$354.00

Today's Price:

$184.08



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Round

Leakage Rating

Class 1

Seal Type

Neoprene

Blade Configuration

Full Circumference

Mounting Option

Inline

product series specifications

    Size:
  • 4‚Ä=, 5‚Ä=, 6‚Ä=, 7‚Ä=, 8‚Ä=, 9‚Ä=, (10‚Ä= to 24‚Ä= even)
    Type:
  • Round, single-blade, 90° rotation
    Shaft:
    :
  • Length 7‚Ä= (17.8 cm)
    :
  • Diameter 1/2‚Ä= (1.3 cm)
    Actuator Bracket:
  • Opt. galvanized or stainless steel, 5.5"W x 9.3"L (to shaft center)
    Operating Torque:
  • (4xD") + 20 in-lb (with seals); (1.5xD") + 20 in-lb (without seals)
    Maximum Static Pressure:
    :
  • 4‚Ä= to 6‚Ä= 10" WC
    :
  • 7‚Ä= to 12‚Ä= 8" WC
    :
  • >12‚Ä= 6" WC
    Maximum Velocity:
  • 4000 ft/min (28.5 m/s)
    Leakage Class:
    :
  • with Seals AMCA Class 1
    without Seals:
  • 1.4% to 5.5% of maximum flow
    Blade Seals:
  • Optional (See ordering)
    Frame:
  • Galvanized 20-gauge steel
    Bearings:
  • Stainless steel
    Blade Design:
  • Riveted double-layer galvanized steel, full blade neoprene seals (standard, others optional)
    Operating Temperature:
  • -50° to 250‚Ñâ (-46° to 121‚ÑÉ)
    Dimensions:
  • 4" through 24" diameter, 7‚Ä= frame length
    Weight:
  • Approximately 1 lb per inch diameter
    Approvals:
    Warranty:
  • 1 year

product series features

  • Round sizes from 4 in to 24 in
  • Velocities up to 4000 FPM
  • Neoprene blade seal standard
  • 20-gauge frame
  • Two-ply blade, strength equivalent to 14-gauge steel

more information & related documents

Series Description

The Ruskin CDRS25 Series round damper frames are made of 20-gauge welded, galvanized steel, 7 in length. Blades are double-skin galvanized steel, strength-equivalent to 14-gauge steel but lighter to handle. Shaft extensions are 1/2 in diameter with stainless-steel bearings for long-life damper actuation. Standard neoprene blade edge seals offer superior low-leakage performance. Optional aluminum or stainless-steel construction is available, as well as an actuator mounting bracket.

Kele Description

10 RND DMPR NEOPRENE SEALS

Manufacturer

Ruskin Manufacturing
