CD60-24X12-OB-S | Ruskin Manufacturing | Actuators & Dampers

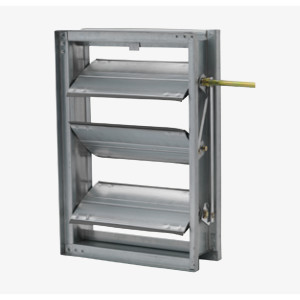

Rectangular AMCA Class 1A Leakage High Performance Control Damper, Galvanized Steel Frame and Airfoil Blades with Ruskinprene Blade Seals and Compressed 300 Series Stainless Steel Jamb Seals , Overall Dimensions: Width 24 inches x Height 12 inches, Opposed Blade, Standard Options include: Concealed Linkage, Operator Shaft 6 inches x 1/2 inch, 5 inches x 1 inch Hat Channel Dimensions, 6 inch Blade Width
Brand:Ruskin Manufacturing
MPN:CD60-24X12-OB-S
SKU:CD60-24X12-OB-S
List Price:
$512.00
Today's Price:
$266.24
Log in for customized pricingproduct specifications
Height
12 in
Type
Steel Frame Blade
Seal Type
Ruskiprene
Blade Configuration
Opposed
Shape
Rectangular
Width
24 in
Leakage Rating
Class 1A
Frame Material
Galvanized Steel
Frame Gauge
16 Gauge Galvanized
Linkage
Concealed
Jamb Seals
Flexible Steel
Hat Channel Dimensions
5 x 1 in
Blade Width
6 in
Operator Shaft
6 x 1/2 in
product series specifications
Frame: 5" x 1" x 16 gauge (127 x 25 x 1.6) hot dipped galvanized steel hat channel reinforced with corner braces.
Blades: Galvanized steel, one piece airfoil shaped, construction of 14 gauge (2.0) equivalent thickness, typically 6" (152) wide, maximum 85/8" wide. Opposed blade action standard, parallel blade action optional.
Axles: 1/2" (13mm) plated steel hex.
Bearings: Oil impregnated, self-lubricating, stainless steel sleeve.
Blade Seals: Ruskiprene blade edge seals mechanically fastened to blades.
Jamb Seals: 300 Series stainless steel cambered compression type.
Linkage: Shake proof SwedgelockTM plated steel assembly, concealed out of airstream.
Control Shaft: 1/2" (13mm) dia. x 6" (152mm) long plated steel shaft on single section units. 1/2" (13) dia. jackshaft on multi-section assemblies up to 121/2 ft 2 (1.16 m2) and 1" (25) dia. jackshaft multi-section assemblies over 121/2 ft2 (1.16 m2)
Max Pressure: Up to 13 inches w.g.
Max Velocity: Up to 6000 FPM
Leakage: Class 1A
Temperature Limits: -72°F (-58°C) minimum and +275°F (+135°C) maximum.
Minimum Size: Single blade – 8"w x 6"h (203 x 152mm). Two blades, opposed or parallel action: 8"w x 10"h (203 x 254mm).
Maximum Size: Single section – 60"w x 72"h (1524 x 1829mm). Multiple section assembly – Unlimited size. *Units over 60"w or 72"h (1524 x 1829mm) are broken down into 48"w (1219mm) max sections.
Estimated Shipping Weight: 7 lbs. (3.2kg) per square foot.
product series features
- Energy savings for building owners
- Low noise generation and lowest pressure drop
- Low maintenance
more information & related documents
Series Description
Galvanized, rectangular, airfoil, class 1A leakage, heavy duty, 6000 fpm, 13 in w.c. max.
Kele Description
REC CONTROL DAMPER, STL BLADE/FRAME, LEAKAGE CLASS1A, W24IN X H12IN, OPPOSED, RUSKIPRENE BLADE SEALS
Manufacturer
Ruskin Manufacturing
Ruskin_CD60_Datasheet
