CD50-8X20-PB-S | Ruskin Manufacturing | Actuators & Dampers

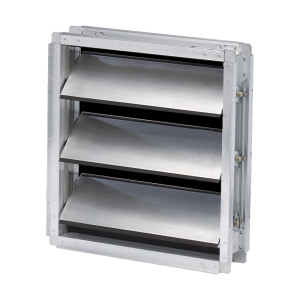

Rectangular Class 1A Leakage High Performance Extruded Aluminum Control Damper, Aluminum Frame and Airfoil Blades with Ruskinprene Blade Seals and Compressed Steel Jamb Seals , Overall Dimensions: Width 8 inches x Height 20 inches, Parallel Blade, Standard Options include: Concealed Linkage, Operator Shaft 6 inches x 1/2 inch, 5 inches x 1 inch Hat Channel Dimensions, 6 inch Blade Width
Brand:Ruskin Manufacturing
MPN:CD50-8X20-PB-S
SKU:CD50-8X20-PB-S
List Price:
$725.00
Today's Price:
$377.00
Log in for customized pricingproduct specifications
Height
20 in
Type
Aluminum AirFoil Blade
Seal Type
Ruskiprene
Blade Configuration
Parallel
Shape
Rectangular
Width
8 in
Leakage Rating
Class 1A
Frame Material
Aluminum
Frame Gauge
16 Gauge Galvanized
Linkage
Concealed
Jamb Seals
Flexible Steel
Hat Channel Dimensions
5 x 1 in
Blade Width
6 in
Operator Shaft
6 x 1/2 in
product series specifications
Frame: 5" x 1" x 6063T5 extruded aluminum hat channel with .125" minimum wall thickness (127 x 25 x 3.2mm). Low profile, 5" x 1/2" (127 x13mm) top and bottom frames on dampers 12" (305mm) high and less. Mounting flanges on both sides of frame.
Blades: 6" (152) wide, 6063T5 heavy gage extruded aluminum, airfoil shape.
Seals:Ruskiprene blade edge seals and flexible metal compressible jamb seals.
Bearings:Molded synthetic.
Linkage: Concealed in frame.
Axles: 1/2" (13mm) plated steel hex.
Maximum Size:
Single section – 60"w x 72"h (1524 x 1829mm).
Multiple section assembly – Unlimited size.
Minimum Size:
Single blade – 6"w x 5"h (152 x 127mm).
Two blades, parallel or opposed action: 6"w x 9"h (152 x 229mm).
Temperature Limits: -72°F (-58°C) and +275°F (+135°C).
product series features
- Energy savings for building owners
- Low noise generation and lowest pressure drop
- Low maintenance
more information & related documents
Series Description
Aluminum, rectangular, airfoil, class 1A leakage, heavy duty, 6000 fpm, 13 in w.c. max.
Kele Description
REC CONTROL DAMPER, AL BLADE/FRAME, LEAKAGE CLASS1A, W8IN X H20IN, PARALLEL, RUSKIPRENE BLADE SEALS
Manufacturer
Ruskin Manufacturing
Minimum_Torque_Requirements
