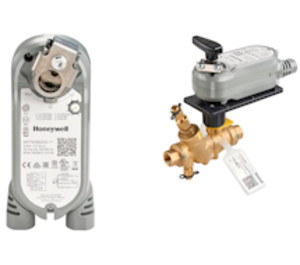

* product series image displayed
MS7403A2030 | Honeywell | Actuators & Dampers
ACT/SR/27INLB/24VAC/VDC/2-10 VDC
Brand:Honeywell
MPN:MS7403A2030
SKU:MS7403A2030
product specifications
Supply Voltage (Nominal)
24 VAC
product series specifications
- Supply Voltage:
- 24 VAC ±20% @ 50/60 Hz class 2 transformer, 24 VDC ±20%/-10%
- Voltage Output:
- 2-10 VDC, 0(2)-10 VDC, 10-0(2) VDC
- Input Impedance:
- 95 kOhm minimum
- Wiring:
- 3-foot cable, 18 AWG
- Rotation:
- 95° ± 3°
- Operating Temperature:
- -40‚Ñâ - 150‚Ñâ
- Operating Humidity :
- 5 to 95% RH
- Enclosure Rating:
- NEMA 2 (IP54)
- Approvals:
- UL60730, IEC 60730-1 and Part 2–14, UL1097 for Double Insulation, CE Certification Low Voltage Directive 2014/35/EU, CE EMC 2004/108/EC, Switch cables are UL certified only
- Weight:
- 1.7 lbs
product series features
- Direct mount to round or square shaft
- NEMA 4 models available
- Overload protection on all models
more information & related documents
Series Description
The Honeywell Diamond Series are spring return direct coupled actuators (DCA) that are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter turn, final control elements requiring spring return fail-safe operation. They can be used for volume control dampers, quarter-turn rotary valves, and are available with cables on all models.They also come equipped with fast test mode.
Kele Description
ACT/SR/27INLB/24VAC/VDC/2-10 VDC
Manufacturer
Honeywell
