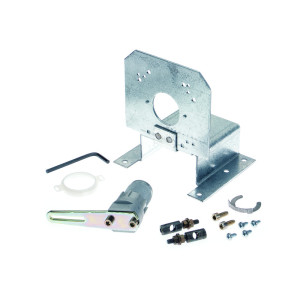

ASK79.350 | Siemens Industry | Actuators & Dampers

Input Impedance: 100kO @ 0/2-10VDC

GXA161.1P, GNP191.1P 100kO @ 0/2-10VDC

GXA151.1P 100kO @ 0/2-10VDC, 500O @ 4-20mA

Motor: Brushless DC

Life Expectancy: 60,000 cycles, 100,000 full stroke cycles, 7,000,000 repositions (GNP)

Rotation: 95°

Manual Override: Manual crank (except GQD), Disengage button (GNP)

Operating Temperature: -25° to 130°F (-32° to 55°C), 0° to 122°F (-18° to 50°C) (GNP)

Operating Humidity: 5 to 95% RH non-condensing

Motor: Brushless DC

Wiring: 3 ft (1.0 m), 18 AWG standard cable (.1U models), 3 ft (1.0 m), 18 AWG plenum cable (.1P models) See notes in Ordering Information for plenum option

Conduit Connections: 1/2" NPT (GCA, GMA only)

Resolution: 100 Steps

Noise: <40 db @ 3' (1m)

Input Impedance: 100kO @ 0/2-10VDC; 500O @ 4-20mA

Approvals: UL File #E35198, CE, plenum rated

Warranty: 2 years
