ASK75.1U | Siemens Industry | Actuators & Dampers

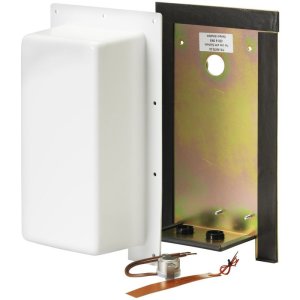

This Weathershield Kit is for OpenAir GCA, GBB and GIB Series Electric Damper Actuators. Includes cover, base place with factory-installed gasketing, 15 TEK self-drilling screws, and anti-rotation (mounting) bracket. Knockouts for connection of 1/2 conduit also included.

Brand:Siemens Industry

MPN:ASK75.1U

SKU:ASK75.1U

List Price:

$265.00

Today's Price:

$137.80



product specifications

Type

Weather Shield

product series specifications

Input Impedance: 100kO @ 0/2-10VDC

GXA161.1P, GNP191.1P 100kO @ 0/2-10VDC

GXA151.1P 100kO @ 0/2-10VDC, 500O @ 4-20mA

Motor: Brushless DC

Life Expectancy: 60,000 cycles, 100,000 full stroke cycles, 7,000,000 repositions (GNP)

Rotation: 95°

Manual Override: Manual crank (except GQD), Disengage button (GNP)

Operating Temperature: -25° to 130°F (-32° to 55°C), 0° to 122°F (-18° to 50°C) (GNP)

Operating Humidity: 5 to 95% RH non-condensing

Motor: Brushless DC

Wiring: 3 ft (1.0 m), 18 AWG standard cable (.1U models), 3 ft (1.0 m), 18 AWG plenum cable (.1P models) See notes in Ordering Information for plenum option

Conduit Connections: 1/2" NPT (GCA, GMA only)

Resolution: 100 Steps

Noise: <40 db @ 3' (1m)

Input Impedance: 100kO @ 0/2-10VDC; 500O @ 4-20mA

Approvals: UL File #E35198, CE, plenum rated

Warranty: 2 years

product series features

  • Self-centering shaft coupling
  • Brushless DC motor technology
  • Rugged, lightweight housings

more information & related documents

Series Description

The Siemens GMA and GCA Series direct-coupled spring-return actuators can control a complete range of HVAC spring-return damper applications. Each spring-return damper actuator is available in either 62 in-lb (7 Nm) torque, handling approximately 16 sq ft of damper area, or 160 in-lb (18 Nm) torque, handling approximately 40 sq ft of damper area. These damper actuators are available in all standard control signal types and offer a wide variety of options and accessories for building automation systems, BAS, applications.

Kele Description

WEATHER SHIELD FOR GCA/GBB/GIB ACTUATORS

Manufacturer

Siemens Industry
