ASK71.2U

ASK71.2U | Siemens Industry | Actuators & Dampers

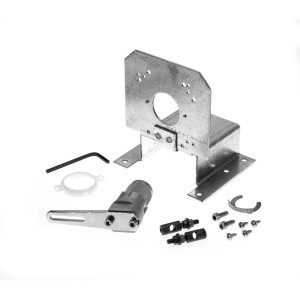

This Frame Mount Kit is for direct mounting to damper frame. The kit includes a crank arm to generate a linear stroke, a Teflon support-bearing ring to minimize side-loading on the actuator's output bearing and other mounting fasteners. This kit is for use with OpenAir GCA, GBB, GIB and GKB damper actuators.

Brand:Siemens Industry

MPN:ASK71.2U

SKU:ASK71.2U

List Price:

$174.00

Today's Price:

$90.48



Availability: 5 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Mounting

product series specifications

    Input Impedance:
    :
  • GXA161.1P, GNP191.1P 100k‚Ѷ @ 0/2-10VDC
    :
  • GXA151.1P 100k‚Ѷ @ 0/2-10VDC, 500‚Ѷ @ 4-20ma
    Motor:
  • Brushless DC
    Life Expectancy:
  • 60,000 cycles, 100,000 full stroke cycles, 7,000,000 repositions (GNP)
    Rotation:
  • 95°
    Manual Override:
  • Manual crank (except GQD), Disengage button (GNP)
    Operating Temperature:
  • -25° to 130°F (-32° to 55°C),
    :
  • 0° to 122°F (-18° to 50°C) (GNP)
    Operating Humidity:
  • 5 to 95% RH non-condensing
    Motor:
  • Brushless DC
    Wiring:
  • 3 ft (1.0 m), 18 AWG standard cable (.1U models), 3 ft (1.0 m), 18 AWG plenum cable (.1P models) See notes in Ordering Information for plenum option
    Conduit Connections:
  • 1/2‚Ä= NSPT (GCA, GMA only)
    Resolution:
  • 100 Steps
    Noise:
  • <40 db @ 3' (1m)
    Input Impedance:
  • 100k‚Ѷ @ 0/2-10VDC
    :
  • 500‚Ѷ @ 4-20ma
    Approvals:
  • UL File #E35198, CE, plenum rated
    Warranty:
  • 2 years

product series features

  • Self-centering shaft coupling
  • Brushless DC motor technology
  • Rugged, lightweight housings

more information & related documents

Series Description

The Siemens GMA and GCA Series direct-coupled spring-return actuators can control a complete range of HVAC spring-return damper applications. Each spring-return damper actuator is available in either 62 in-lb (7 Nm) torque, handling approximately 16 sq ft of damper area, or 160 in-lb (18 Nm) torque, handling approximately 40 sq ft of damper area. These damper actuators are available in all standard control signal types and offer a wide variety of options and accessories for building automation systems, BAS, applications.

Kele Description

FRAME MOUNT KIT GCA/GBB/GIB

Manufacturer

Siemens Industry
