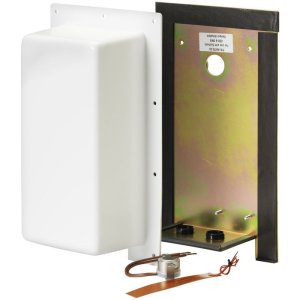

ASC1.6 | Siemens Industry | Actuators & Dampers

SKB/C/D 0 POS INDICATOR SWITC

Brand:Siemens Industry

MPN:ASC1.6

SKU:ASC1.6

List Price:

$195.00

Today's Price:

$101.40



Lead time of 4 days. Chat with Kele experts now

product specifications

Type

Switch

product series specifications

Supply Voltage: 20-28 VAC, 50/60 Hz

GAP Series: 24 VAC/VDC, ±20%, 50/60 Hz

Motor: Brushless DC

Wiring: 3' (0.9 m) AWG 18 plenum-rated cable

Action: DA/RA wire connections (2-pos, floating), DA/RA switch selectable (proportional)

Enclosure: See dimensions

Rotation: 95°

Manual Override: Disengage button

Shaft Coupling: Self-centering with single screw; GDE, GLB: Locking screw with bushing

Noise: <45 db @ 3' (1m), (except GAP Series)

Life Expectancy: 60,000 cycles, 1.5 million repositions

GAP Series: 100,000 full stroke cycles, 7,000,000 repositions

Operating Temperature: -25° to 130°F (-32° to 55°C)

GAP Series: 0° to 122°F (-18° to 50°C)

Operating Humidity: 5 to 95% RH non-condensing

Approvals: UL File #E35198, CE, plenum rated, RoHs

Warranty: 2 years

product series features

  • Self-centering shaft coupling
  • Brushless motor technology on all models
  • Rugged, lightweight housing

more information & related documents

Series Description

The Siemens GDE, GLB, GEB, GBB, GIB, and GAP Series direct-coupled, non-spring return actuators provide actuation for a complete range of HVAC non-spring return damper applications, from terminal units to inlet vane dampers and more. They range in torque from 44 in-lb (5 Nm), handling approximately 11 sq ft of damper area, to 310 in-lb (35 Nm), handling approximately 77 sq ft of damper area. These actuators are available in all standard control signal types and offer a wide variety of options and accessories.

Kele Description

SKB/C/D 0 POS INDICATOR SWITC

Manufacturer

Siemens Industry
