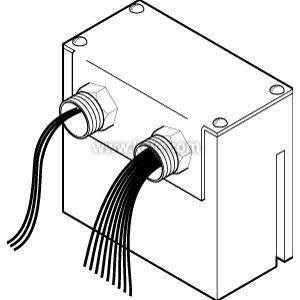

CP-8301-120 | Schneider Electric Buildings | Actuators & Dampers

Act Drive: 1-15 VDC Input, 120 VAC, 20 VDC Power Supply, 3 VDC Fixed Span

Brand:Schneider Electric Buildings



List Price:


Today's Price:


Availability: Usually Ships in Less Than 5 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications


Actuator Drive

product series specifications

    Supply Voltage:
  • 20 Vdc, 50 mA regulated and filtered
  • Color-coded pigtail leads.
    Operating Temperature:
  • -40 to 140‚Ñâ (-40 to 60‚ÑÉ)
    Operating Humidity:
  • 5 to 95% relative humidity, non-condensing
  • Directly to an actuator. The upright position is preferred, but other positions are acceptable.
    Enclosure Rating:
  • Black Phenolic - IDI 44-10 5VA - RoHS Compliant.
  • 4‚Ä= x 3-1/4‚Ä= x 1‚Ä=
  • UL, CUL

product series features

  • Mounts directly onto Schneider Electric proportional, electric, gear train actuators.
  • Fixed 1 to 15 Vdc operating range.
  • 24, 120, and 240 Vac models available.
  • Color-coded pigtail leads.

more information & related documents

Series Description

The CP-8301-xxx Series Electronic Actuator Drive is designed to process a variable 1 to 15 Vdc signal from a controller to provide proportional control of an electric gear train actuator.
